Region or frequency is not supported in this release - Transmit Disabled!

Products PMP
1

Hi,

I recently installed a PMP450i and after configuring and a reboot I am getting the message - Region or frequency is not supported in this release - Transmit Disabled!

I have it set to Australia and selected 5.7Ghz with 20Mhz channel.

I have also connected to a CMM4 unit with the correct pin out (5 & 7 swapped) but the unit is not detecting a sync signal.

Can anyone help with the message as I have not had this occur on our PMP450 units before.

Thanks

2

I had something similar happen when doing our first 5.4 Ghz link.  I believe I had to save and reboot in between setting the region and chosing the frequency band.

I am setting up 2 for tomorrow right away, so I will confirm.

3

I have confimed this.  When I frst power up the radio I have to configure the region and then save and reboot.  Then I can choose the frequency band and all is good.  This is on 14.1.1.

4

Im my experience, swapping the wrong wires in the cable leads to not getting sync.  I would verify that it's blue-stripe and brown-stripe which are swapped, as those should be pins 5 and 7.

5
@arobo wrote:

Hi,

I recently installed a PMP450i and after configuring and a reboot I am getting the message - Region or frequency is not supported in this release - Transmit Disabled!

I have it set to Australia and selected 5.7Ghz with 20Mhz channel.

I have also connected to a CMM4 unit with the correct pin out (5 & 7 swapped) but the unit is not detecting a sync signal.

Can anyone help with the message as I have not had this occur on our PMP450 units before.

Thanks

Hi arobo,

Is this a 450 AP or a 450i AP?

Thanks,

Sriram

6

Hi,

It is a 450i unit and can confirm that the cable is correct as per the manual and the brown/white and blue/white cores on the cable are swapped.

I have saved with the correct region (Oceania -> Australia) and rebooted - and tried generate sync but the issue remains.

7

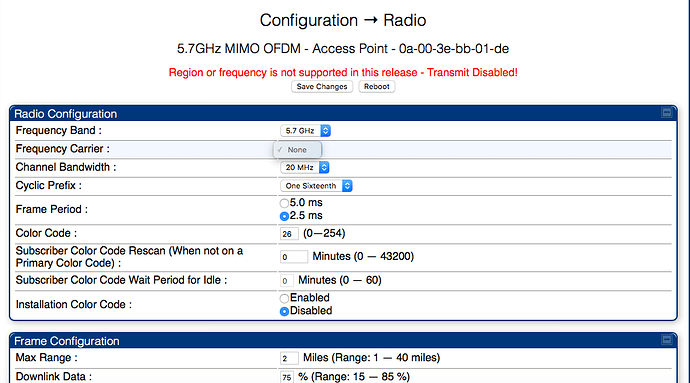

Some screen shots of the issue -

Screen Shot 450i
Screen Shot 450i1024×639 69.1 KB

Screen Shot 2016-03-15 at 10.27.15 PM.png
Screen Shot 2016-03-15 at 10.27.15 PM.png1016×518 52.7 KB

Screen Shot 2016-03-15 at 10.27.30 PM.png
Screen Shot 2016-03-15 at 10.27.30 PM.png1014×563 62.8 KB

8

Hi arobo,

We had not received type acceptance in Australia in time for 14.1.1 release. We plan to open up Australia country code in 14.1.2 release for PMP 450i.

Thanks,

Sriram

9

Hi, we're seeing this exact same thing on 14.1.1 with a PMP-450i, North America United States. Advice?

10
@Dan Parrish wrote:

Hi, we're seeing this exact same thing on 14.1.1 with a PMP-450i, North America United States. Advice?

Hi,

The 5.2/5.4 GHz bands on the 450i for North America->United States is available in Release 14.1.2 which is currently in beta: http://community.cambiumnetworks.com/t5/PMP-Beta/Beta-Software-14-1-2-Build-17-for-PMP-PTP-450-and-PMP-PTP-450i/m-p/54771#U54771

Thanks,

Sriram

11

Thanks, installing now.

12

I got the same error in Vietnam. how can I solve it?

image1462×721 58.8 KB

13

Have you tried saving the config and rebooting?
