User Defined overrides for settings 2.5g and 5g to same password and how to set channel to 40 mhz?

[MedalFolder_Box]

SSID1=${SSID1=2.4G_Name}
WPAPSK1=${SSID1_PASS=2.4G_password}

RTDEV_SSID2=${SSID2=5G_Name}
WPAPSK2=${SSID2_PASS=2.4G_password}

I would like the 5G to have same password as 2.4 and set channel to 40mhz instead
of 20/40 mhz.

And have the Encryption set to WPA2. Can this all be done with user defined values?

The device is cambium r195w

[Nilesh22]

Yes First part can be achieved .

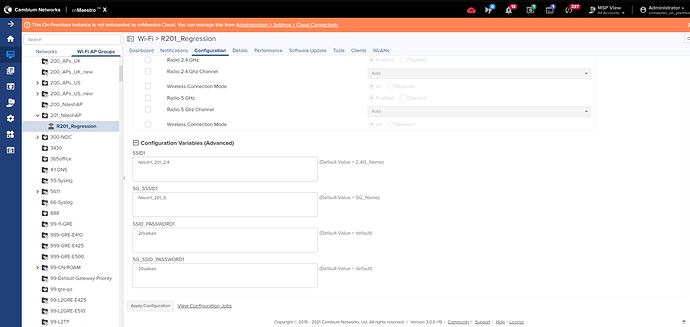

For 5 Ghz use , “RTDEV_WPAPSK1”. Below configuration , I created .

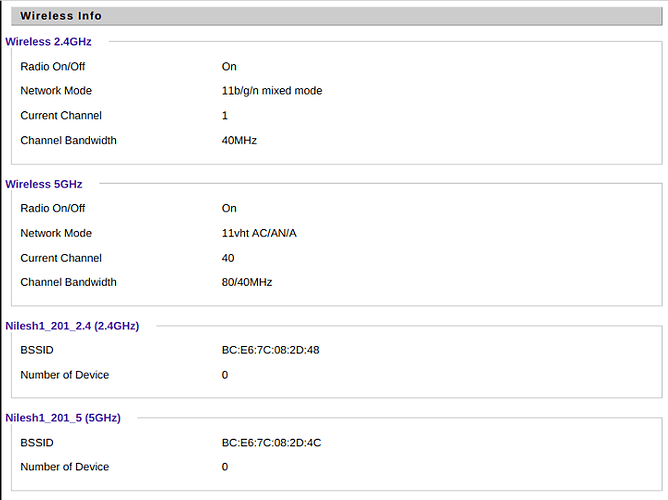

For 2nd part ,In device UI also we support only 20Mhz and 20/40Mhz for 5Ghz , “RTDEV_HT_BW 0 is for 20 and 1 is for 20/40.”
SSID1=${SSID1=2.4G_Name}
WPAPSK1=${SSID_PASSWORD1=default}
RTDEV_SSID1=${5G_SSSID1=5G_Name}
RTDEV_WPAPSK1=${5G_SSID_PASSWORD1=default}

Unique per-device values in AP Groups using User-defined Overrides

There may be scenarios when using AP Group-based configuration where you want to apply unique values to devices for parameters that are not supported as Overrides.  This article will explain how to accomplish this using User-defined Overrides and provide examples at the end for common use-cases. User-defined Overrides are partial device templates that can be attached to an AP Group.  Any configuration entered here is given preference over any values set in the AP Group.  Like templates they sup…

[MedalFolder_Box]

Thank you for your response!

[Nilesh22]

You are welcome
