Hi.
I checked a few our APs (e-series) and on every one of them we get RX errors on Ethernet interface and also on VLAN interface. It seems strange to me that this is on all of our APs. Also on the ones where the cabling is new and we know it is good. It just seems too strange for me. Anyone else noticed this?
Kind regards
I never went for it but now that you mentioned it I checked and i have the same situation as you with the e50X series access points (3.11.4.1-r3).
All cables are tested before connecting the access points and they were ok (shielded, cat 5e).
Strange
There could be many reasons. One common reason is due to invalid multicast packets received at AP.
Could you please share output of "service show netstat’.
Here:
0(config)# service show netstat
Active Internet connections (servers and established)
Proto Recv-Q Send-Q Local Address Foreign Address State
tcp 0 0 0.0.0.0:880 0.0.0.0:* LISTEN
tcp 0 0 0.0.0.0:80 0.0.0.0:* LISTEN
tcp 0 0 0.0.0.0:22 0.0.0.0:* LISTEN
tcp 0 0 127.0.1.1:8888 0.0.0.0:* LISTEN
tcp 0 0 127.0.0.1:8889 0.0.0.0:* LISTEN
tcp 0 0 127.0.0.1:8890 0.0.0.0:* LISTEN
tcp 0 0 0.0.0.0:443 0.0.0.0:* LISTEN
tcp 0 0 127.0.1.1:445 0.0.0.0:* LISTEN
tcp 0 0 :42166 :443 ESTABLISHED
tcp 0 268 :22 :12204 ESTABLISHED
udp 0 0 127.0.0.1:37898 127.0.0.1:1812 ESTABLISHED
udp 0 0 0.0.0.0:45085 0.0.0.0:*
udp 0 0 0.0.0.0:12321 0.0.0.0:*
udp 0 0 127.0.0.1:55437 127.0.0.1:1812 ESTABLISHED
udp 0 0 0.0.0.0:161 0.0.0.0:*
udp 0 0 127.0.0.1:51884 127.0.0.1:1812 ESTABLISHED
udp 0 0 127.0.0.1:36268 127.0.0.1:1812 ESTABLISHED
udp 0 0 127.0.0.1:51119 127.0.0.1:1812 ESTABLISHED
udp 0 0 0.0.0.0:51382 0.0.0.0:*
udp 0 0 127.0.0.1:51650 127.0.0.1:1812 ESTABLISHED
udp 0 0 127.0.0.1:11235 0.0.0.0:*
Active UNIX domain sockets (servers and established)
Proto RefCnt Flags Type State I-Node Path
unix 2 [ ] DGRAM 4101 /var/tmp/infrad_server
unix 2 [ ] DGRAM 3340 /var/tmp/wifid_server
unix 2 [ ACC ] STREAM LISTENING 3342 /var/tmp/wifid_cserver
unix 2 [ ] DGRAM 4110 /tmp/dhcp_env_var
unix 2 [ ] DGRAM 3344 /var/tmp/wifid_info_ser ver
unix 2 [ ] DGRAM 4112 /tmp/pppoe_env_var
unix 2 [ ] DGRAM 3346 /tmp/wifi_api_server
unix 2 [ ACC ] SEQPACKET LISTENING 3096 /run/udev/control
unix 2 [ ACC ] STREAM LISTENING 3355 /var/tmp/wifid_agent
unix 2 [ ACC ] SEQPACKET LISTENING 4146 /var/tmp/agent_cgiserve r
unix 2 [ ] DGRAM 4150 /var/tmp/agent_logserve r
unix 2 [ ] DGRAM 4152 /tmp/falcon_event_sock
unix 2 [ ACC ] STREAM LISTENING 3396 /var/tmp/wifid_device_a gent_server
unix 2 [ ACC ] STREAM LISTENING 346 /var/tmp/scmd_server
unix 2 [ ] DGRAM 350 /var/tmp/scmd_cevents
unix 2 [ ] DGRAM 352 /tmp/dhcp_client_info
unix 2 [ ACC ] STREAM LISTENING 358 /tmp/fcgi_scmd_server
unix 2 [ ] DGRAM 360 /var/tmp/scm_autopilot_ msgs
unix 5 [ ] DGRAM 105 /dev/log
unix 2 [ ] DGRAM 10228426 /var/tmp/snmpd_trap_s erver
unix 2 [ ] DGRAM 441
unix 2 [ ] DGRAM 2198
unix 2 [ ] DGRAM 3214
unix 3 [ ] STREAM CONNECTED 8606342
unix 2 [ ] DGRAM 344
unix 2 [ ] DGRAM 2037
unix 2 [ ] DGRAM 4144
unix 3 [ ] STREAM CONNECTED 8606343 /var/tmp/scmd_server
unix 2 [ ] DGRAM 4097
unix 3 [ ] STREAM CONNECTED 2512
unix 2 [ ] DGRAM 4098
unix 2 [ ] DGRAM 10228385
unix 2 [ ] DGRAM 745
unix 2 [ ] DGRAM 12384230
unix 3 [ ] DGRAM 2081
unix 3 [ ] STREAM CONNECTED 10228628
unix 3 [ ] STREAM CONNECTED 2520 /var/tmp/wifid_device_a gent_server
unix 2 [ ] DGRAM 339
unix 3 [ ] STREAM CONNECTED 10229615 /var/tmp/scmd_server
unix 2 [ ] DGRAM 10230228
unix 3 [ ] DGRAM 2082
I deleted IP addresses…

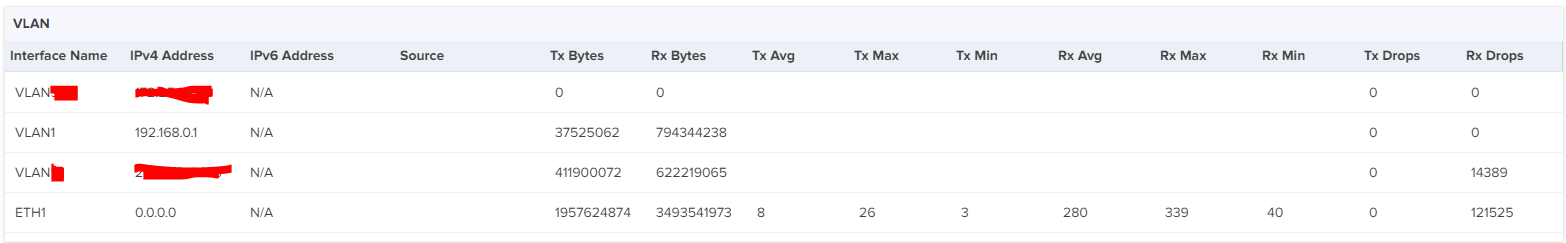

The same AP on cnMaestro at the same time:
Kind regards
Hi,
I do not see any Queues being filled up. Most probably, AP resource such as CPU, buffer usage is ruled out.
Could you please message packet capture to my ID when DROP counter increases.
Will diagnose the capture, and will let you know the updates.
