Enabling Remote Syslog server and changing the debug log level for logging cnMaestro and Device related logs from the device to the remote syslog server
These logs will be useful for debugging various issues including connectivity issues between the devices and cnMaestro
ePMP 1000/2000/Force 180/200 and ePMP Elevate :
Login to the device GUI and enable the debug log level by navigating to Configure->System and selecting all the syslog masks as shown in the below screenshot. Also the user can specify upto 4 suslog servers so that the cnMaestro and devioce related logs from the device are sent to the remote syslog server
Also the logs can be viewed by logging in to the device GUI and navigating to Monitor > System Log page .
enable the syslog display if not already enabled as shown in below screenshot :
ePMP 1000 HS and cnPilot E400/E500/E501 :

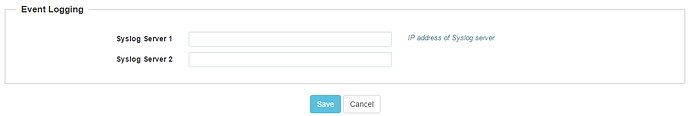

Login to the device GUI and Navigate to the Configure->System and in the event logging specify the syslog server IP Address of the remote syslog server where the cnMaestro device logs needs to be captured. This will allow to log the cnMaestro and device related logs from the device to remote syslog server
Login to the device CLI using SSH and issue the following command for enabling the cnMaestro debug level .
This will allow to log the cnMaestro and device related logs from the device to remote syslog server with the debug level logging
logging cnmaestro 7
Save and Apply the settings from cli itself
Also to view the device agent logs from the device cli issue the following command
service show debug-logs device-agent
Latest log details will be shown in the top
Sample log
2015-12-12 14:51:48 wifi.c:1425:platform_set_cns_connection_state: New Connection_state Connected(6)
2015-12-12 14:51:43 device-agent.c:1005:handle_cns_msg: MSG_REGISTER_SUCCESS received
2015-12-12 14:51:43 wifi.c:1425:platform_set_cns_connection_state: New Connection_state Device Approval Pending(5)
2015-12-12 14:51:17 device-agent.c:1318:send controller data 1 seconds
2015-12-12 14:51:15 https-client.c:426:Server certificate is verified and it is valid 2015-12-12 14:51:15 https-client.c:390:SSL_connect succesful
2015-12-12 14:51:14 https-client.c:398:SSL_ERROR_WANT_READ try again 2015-12-12 14:51:14 wifi.c:1636:Server cert validation is enabled 2015-12-12 14:51:14 https-client.c:398:SSL_ERROR_WANT_READ try again
2015-12-12 14:51:14 https-client.c:192:Open connection ok
2015-12-12 14:51:14 https-client.c:179:EINPROGRESS in connect()
2015-12-12 14:51:07 device-agent.c:1747:DA_STATE_DISCONNECTED
2015-12-12 14:51:07 device-agent.c:1329:callback_websocket: LWS_CALLBACK_CLOSED
cnPilot R200/R201/R190 :
Login to the device gui and navigate to Administration->Management and in the system log settings specify the parmeters as shown in the below screenshot. This will allow to log the cnMaestro and device related logs from the device to remote syslog server
Login to the device GUI and select the status->syslog page from Home to see the logs locally on the device gui itself
Sample log
<Mon Dec 7 14:11:14 2015> DEV_MANAGER[11774]: callback_websocket: LWS_CALLBACK_CLOSED
<Mon Dec 7 14:11:14 2015> DEV_MANAGER[11774]: DA_STATE_DISCONNECTED
<Mon Dec 7 14:11:22 2015> DEV_MANAGER[11774]: EINPROGRESS in connect()
<Mon Dec 7 14:11:22 2015> DEV_MANAGER[11774]: SSL_ERROR_WANT_READ try again
<Mon Dec 7 14:11:23 2015> DEV_MANAGER[11774]: SSL_ERROR_WANT_READ try again
<Mon Dec 7 14:11:23 2015> DEV_MANAGER[11774]: Server certificate is verified and it is valid
<Mon Dec 7 14:11:23 2015> DEV_MANAGER[11774]: Received Headers : "HTTP/1.1 302 Found...
<Mon Dec 7 14:12:54 2015> DEV_MANAGER[11774]: callback_websocket: LWS_CALLBACK_CLIENT_ESTABLISHED
<Mon Dec 7 14:12:54 2015> DEV_MANAGER[11774]: Cleanup any leftover stats requests/timers
<Mon Dec 7 14:12:54 2015> DEV_MANAGER[11774]: send controller data 1 seconds
<Mon Dec 7 14:13:22 2015> DEV_MANAGER[11774]: handle_cns_msg: MSG_REGISTER_SUCCESS received
PMP 450/450i/450m AP/SM :
Login to the device GUI and navigate to Configuration->cnMaestro and enable the cnMaestro Agent debug log level to debug as shown in the below screenshot
Also to enable the remote syslog server navigate to the Configuration->Syslog and configure the parameters as shown in the below screenshot for AP and SM respectively
AP :
SM :
The above settings will allow to log the cnMaestro and device related logs from the device to remote syslog server with the debug log level
Also the logs can be checked in the device GUI by Logging to the device and select the Logs->Device Agent Log page
.
