Attribute Name |
Number[1] |
Bridge Mode |
NAT / Router Mode |
GUI Analogue |
Valid Values |
Cambium-ePMP-VLANMEMSET |
26.17713.52 |
Applicable |
Not Applicable |
Membership VLANs table |
1-4094 (for each VLAN ID in the range) Example: To set a VLAN Membership range from VLAN ID 256 (Begin) to VLAN ID 300 (End), in the RADIUS users file set: Cambium-ePMP-VLANMEMSET = "16777516" This decimal value in hex is 0x0100012C. In this case, the first two bytes represent the beginning of the range, 0x0100 (256 in decimal) and the last two bytes represent the end of the range, 0x012C (300 in decimal). |
Cambium-ePMP-VLMAPPING |
26.17713.58 |
Applicable |
Not Applicable |
VLAN Mapping table |
1-4094 (for each VLAN ID in the range) Example: To map C-VLAN 23 to S-VLAN 400, in the RADIUS users file set: Cambium-ePMP-VLMAPPING = "1507728" This decimal value in hex is 0x00170190. In this case, the first two bytes represent the C-VLAN value 0x0017 (23 in decimal) and the last two bytes represent the S-VLAN value 0x0190 (400 in decimal) |
[1] 26 connotes Vendor Specific Attribute, per RFC 2865

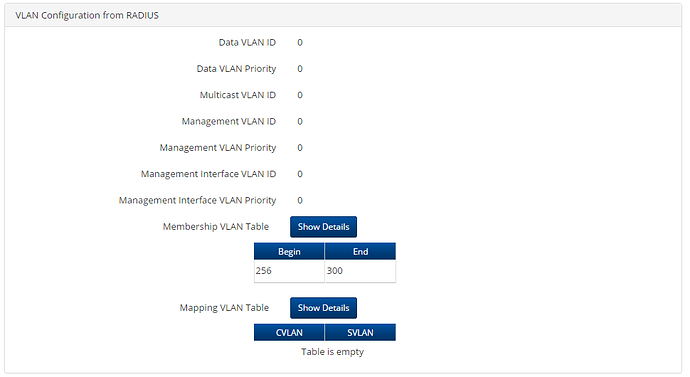

Configuration may be verified on the device Monitor > Network page:
