5GHz Cambium PMP Access point 450v and Subscriber module antenna pattern files

Products PMP
1

Hi, I’m looking for 5GHz Cambium PMP Access point 450v and Subscriber module antenna pattern files. Could please help me to get the details.

2

Gunasekaran,

I have emailed you separately to provide the AP patterns. But it’s also worth noting for other users that almost all our SM antenna patterns can be downloaded from LINKPlanner (https://lp.cambiumnetworks.com)

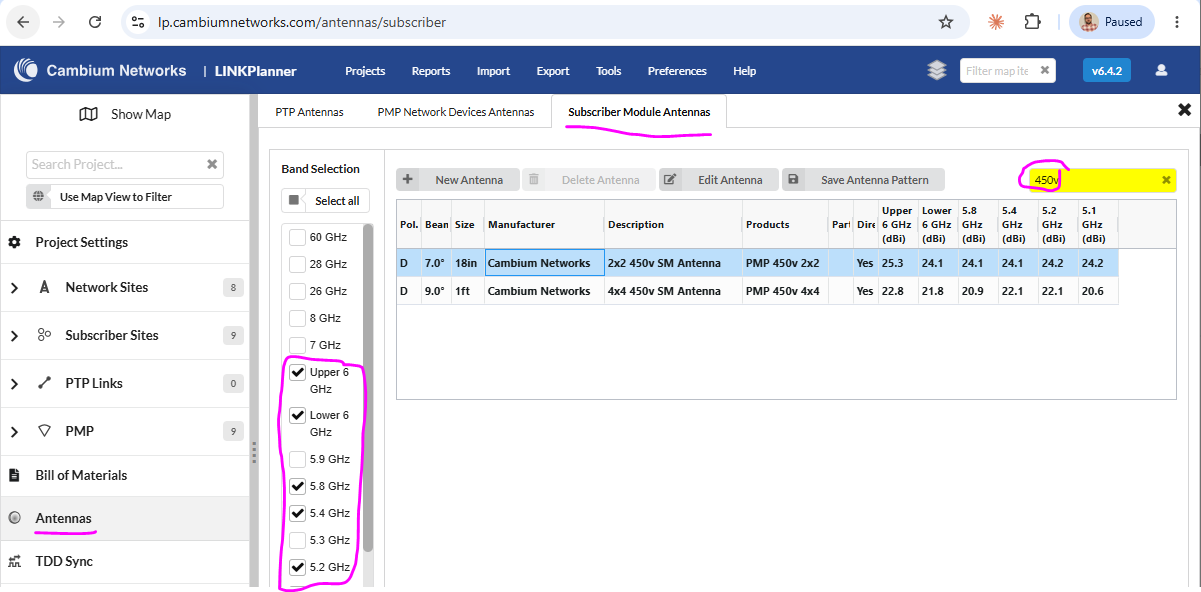

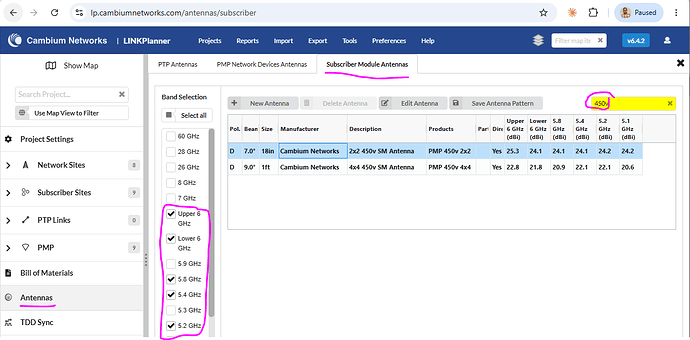

  • Choose Antennas from the right.
  • Select the Subscriber Module Antenna tab.
  • Enable the bands that you are interested in.
  • (Optionally) Filter the list based on a text string.
  • Left click the antenna that you are interested in and click the “Save Antenna Pattern” button from the toolbar above.

image1201×592 47.4 KB
