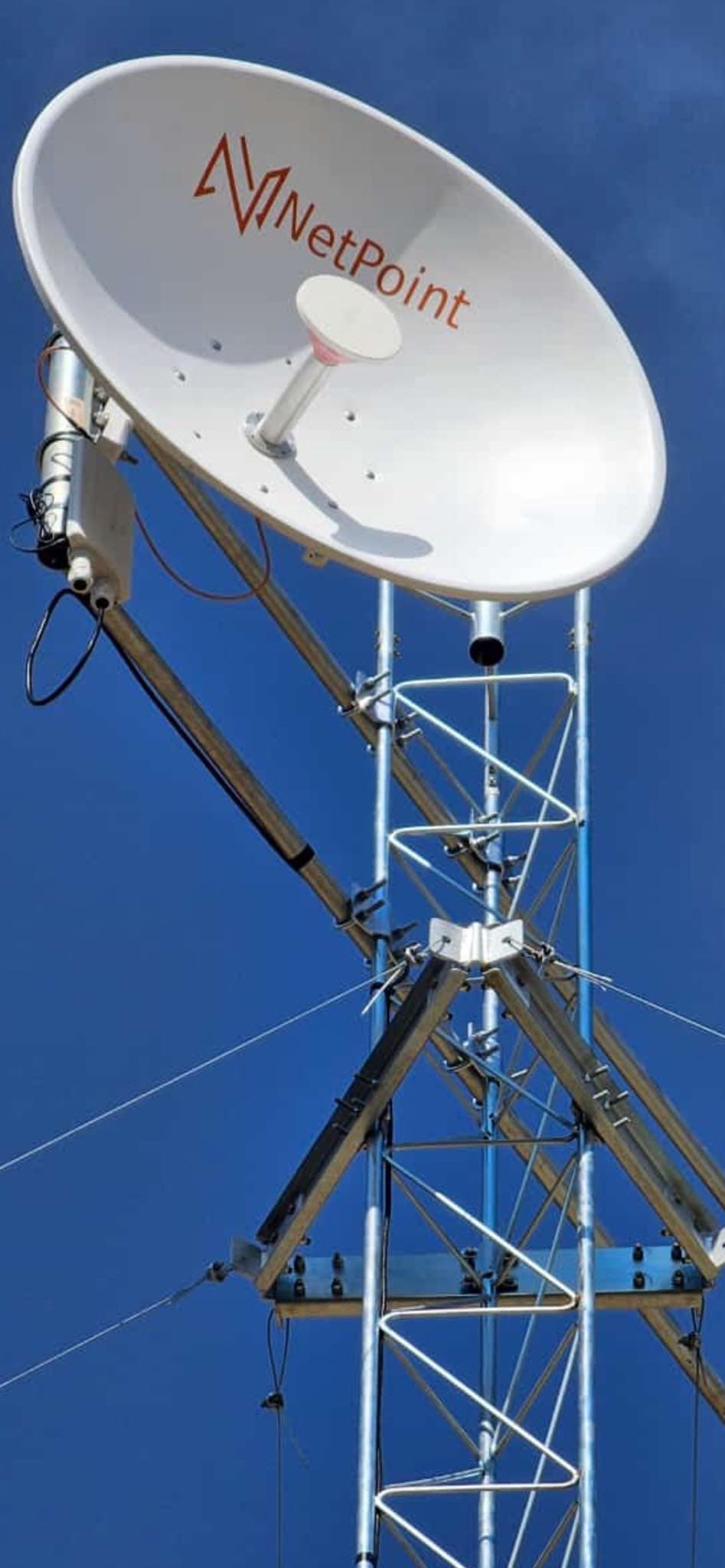

Pairing the Force 4600C with a 32 dBi NetPoint NP6-DP-3FT antenna results in a highly stable, long-distance PTP link. Even at over 30 km, it maintains strong modulation and low latency. This performance depends on precise alignment, proper spectrum planning, and the high front-to-back isolation and narrow beamwidth provided by the NetPoint NP6 antenna. It’s a solid setup for high-throughput rural or long-range backbone deployments.

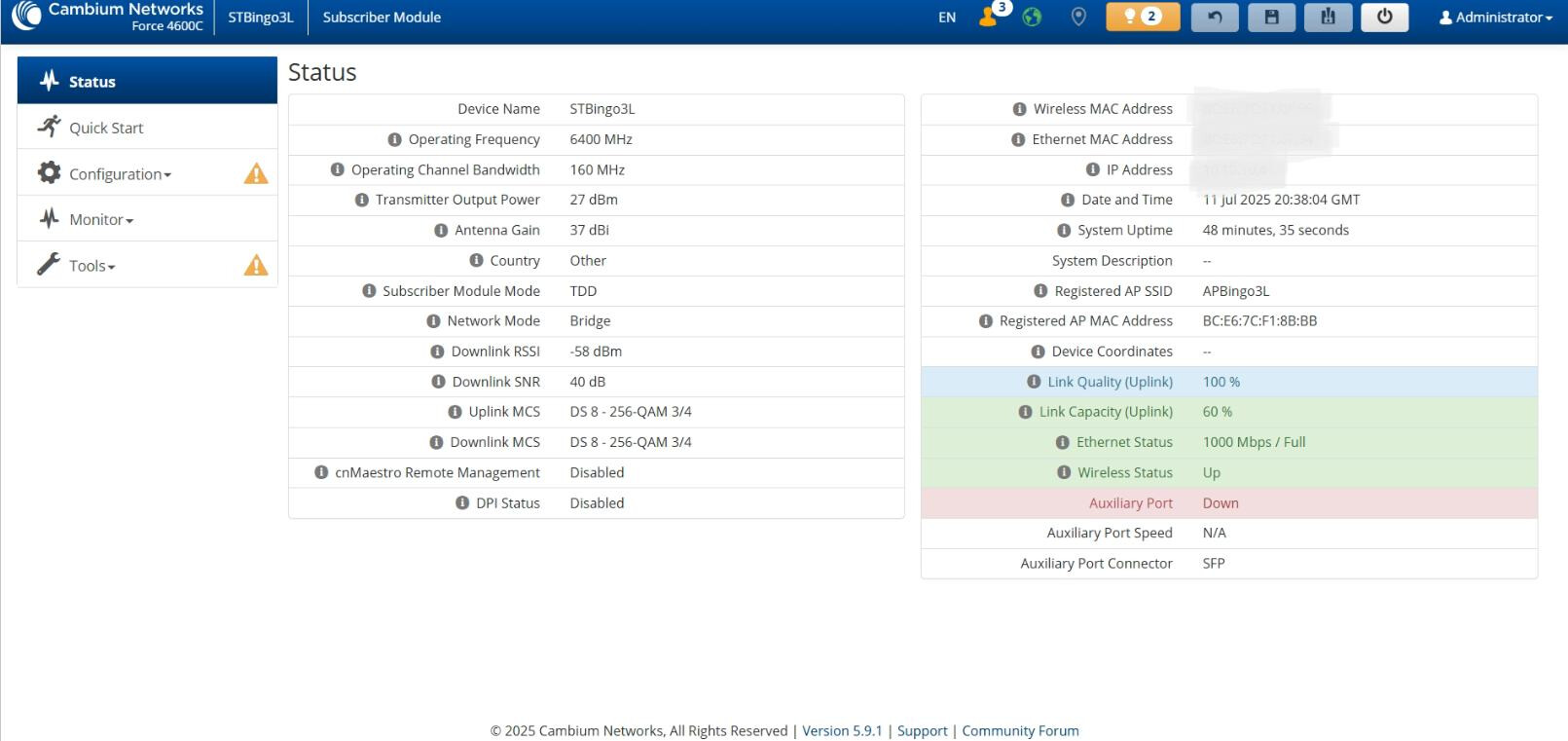

Deployment Overview:
- Distance: 32.6 km
- Operating Frequency: 6400 MHz
- Channel Width: 160 MHz
- Antenna Gain: 32 dBi (NetPoint NP6)
- Transmitter Output Power: 27 dBm
- Polarization: Slant V/H
- RSSI (Peak): -56 dBm
- SNR: 40 dB
- Modulation (MCS): DS8 / DS5 (256-QAM 3/4)

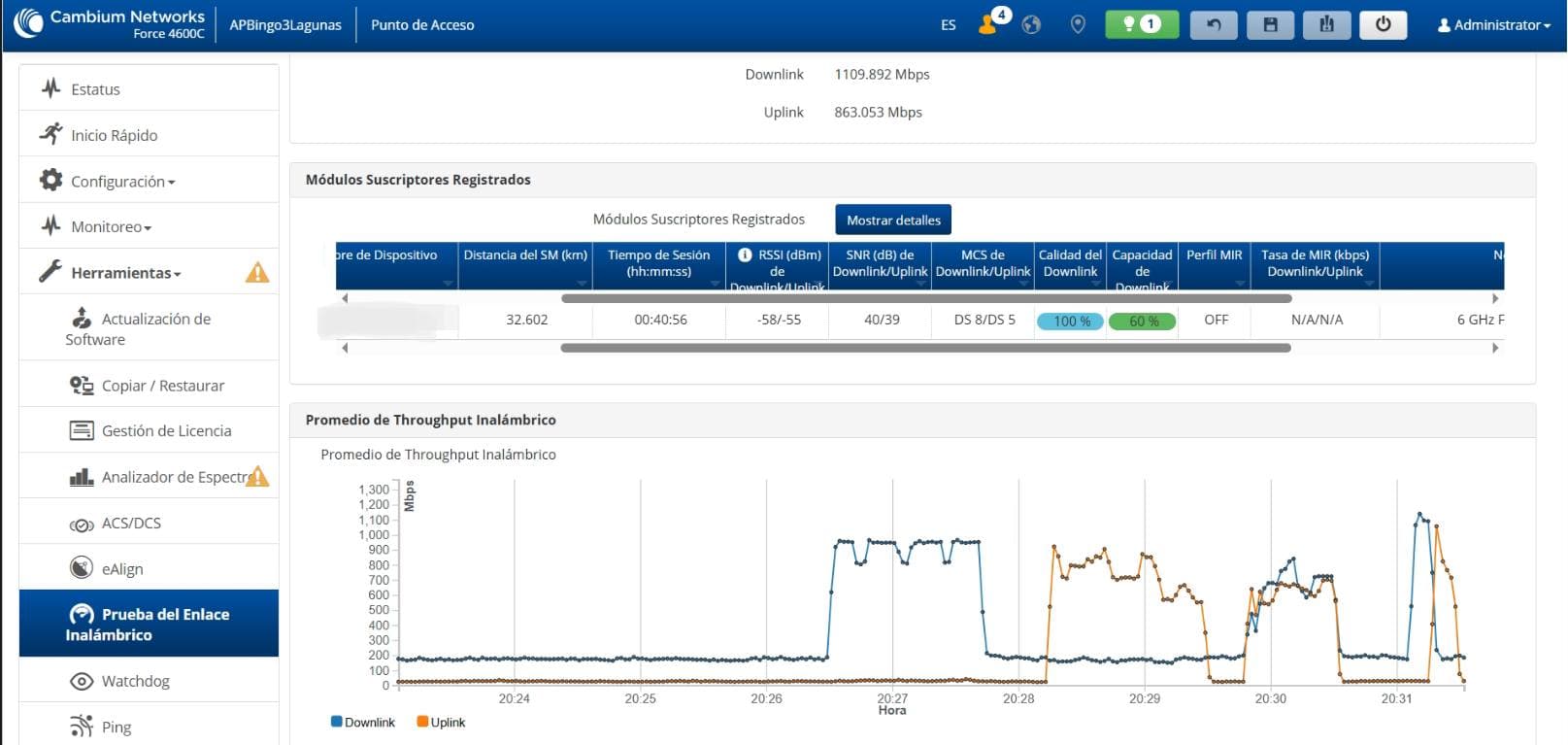

- Throughput:
- Downlink: 1109.9 Mbps
- Uplink: 863.0 Mbps

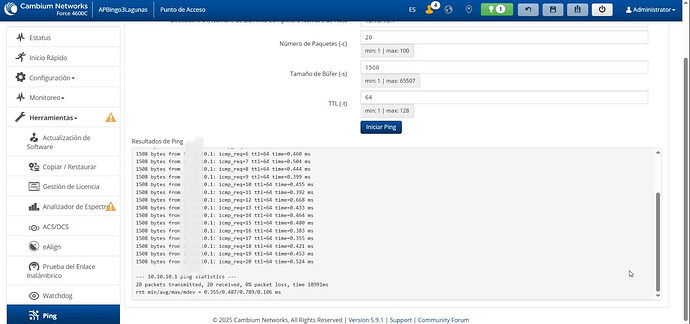

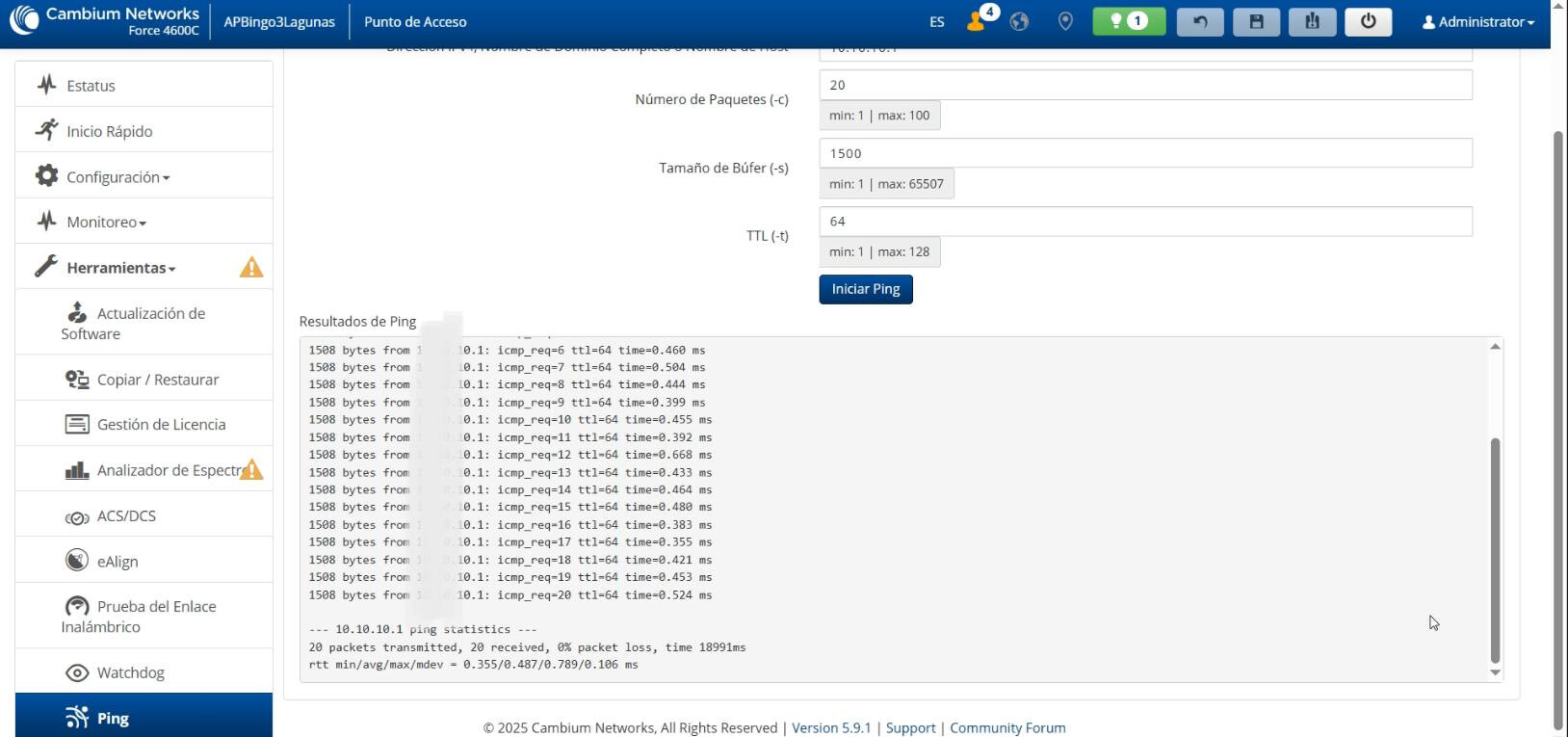

- Latency (Ping RTT): Avg 0.355 ms (Min 0.106 ms, Max 0.789 ms)
- Packet Loss: 0%
- Link Quality: 100%
- Uplink Capacity: 60%
- Ethernet: 1000 Mbps Full Duplex

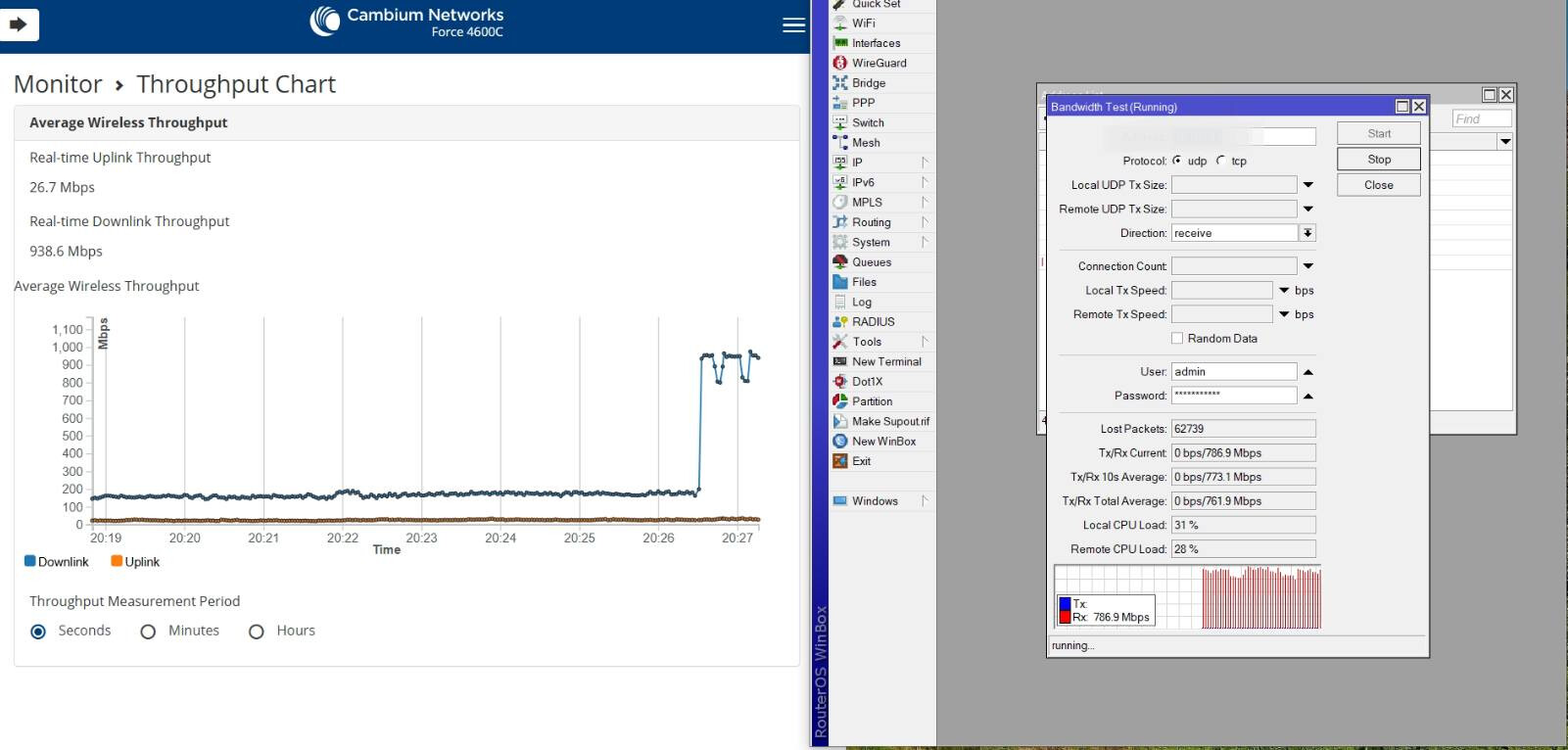

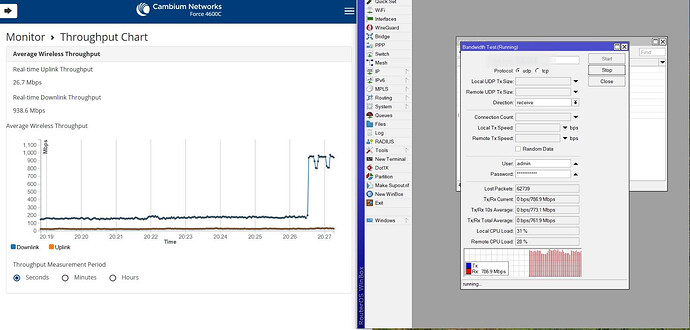

- Mikrotik UDP Test:
- Download: 786.9 Mbps
- Upload: 615.7 Mbps
- Combined throughput: ~1.25 Gbps
- Mikrotik UDP Test:
Holly Cow, I love This!
