Cambium Wi-Fi Leaky Feeder Solutions

Products Enterprise Wi-Fi Networks
1

Hi all,

I’m looking for some guidance on whether Cambium has or recommends any solution for using leaky feeder or radiating cable with Cambium Wi-Fi equipment.

The use case would be providing wireless coverage through a tunnel where conventional AP placement is impractical due to access issues. I’m aware that radiating cable systems are often used in these types of environments, but I’m not sure whether Cambium offers anything directly, or whether this would need to be done using a third-party radiating cable connected to a Cambium radio/AP with external antenna connectors.

A few questions then I guess:

Does Cambium offer any official leaky feeder / radiating cable solution with repeaters?

Are there any Cambium APs or radios that are recommended for this type of deployment?

Has anyone successfully used Cambium equipment with leaky feeder cable?

Would this be more suitable on 2.4 GHz only, or are there any supported/recommended options for 5 GHz as well?

Any advice, design notes, or examples from similar deployments would be appreciated.

Thanks.

2

hi, all our access points are internal antenna model excet xe3-4tn which comes with the external antenna option. no leaky feeder or radiating cable option from cambium. we can make use xe3-4tn with the directional antennas

3

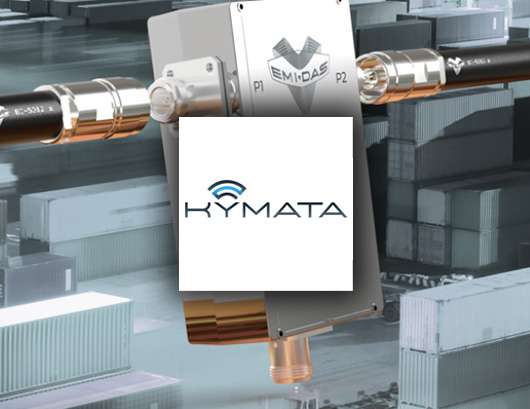

Hey, check out Kymata :slight_smile: - we have deployed this in a similar environment with great results

4

How long is the tunnel?

XV2-2T1 at the outside and XV2-2T in the tunnel?

Shooting down the tunnel… you could cover ~2Km with 2 units.
