cnMaestro 5.1.1 (Cloud) Release Notes

Introduction

This document highlights new features and significant updates in cnMaestro Cloud.

Important: Web Browser
Restart your browser (or clear the browser cache with a hard reload) if you have UI problems after the 5.1.1 update.

Important: Enterprise Wi-Fi AP Version
Update to the Enterprise Wi-Fi AP 6.6.1 Release Candidate build if you plan to use the MarketApps feature.

MarketApps

MarketApps help customers and end users enhance the value of their network with tailored, vertical-specific, microservices-based applications. In the future these will include Cambium Apps, User Apps, and API-based Apps from third parties. This release supports two specialized apps for MDU MSPs:

  1. Managed Wi-Fi App
  2. Self-Service Personal Wi-Fi App

Managed Wi-Fi

The Managed Wi-Fi App allows property managers to centrally administer Wi-Fi networks. It supports both community Wi-Fi networks and personal Wi-Fi networks, enabling resident control and customization.

Self-Service Personal Wi-Fi

The Self-Service Personal Wi-Fi App allows residents to manage their Wi-Fi networks independently within MDUs by creating and personalizing SSIDs for their units.

To access MarketApps, navigate to Network Services > MarketApps in cnMaestro.

5.1.1-1

Adding a New MarketApp

To add a new MarketApp, follow these steps:

Navigate to Network Services > MarketApps in cnMaestro.

Click the Add New button on the top right corner to launch the Select App Type window.
5.1.1-2

Enter a Name, Managed Account, and Application Type and click Save.

NSE 3000 Features

Starting in Release 1.7, NSE 3000 supports High Availability (HA). HA can be used to minimize downtime in the event of hardware failure. An HA pair consists of a primary and a spare device. The spare device becomes active when the primary device fails. Only one license is required for an HA pair. There are two ways to configure an HA Pair.

Establish HA Pair from the Onboarding Queue

The HA Pair can be established directly from the Onboarding Queue. As a prerequisite, a standalone Active NSE should be available in the Site and mapped to an NSE Group.

Note : Before adding the spare device to the HA pair, please ensure HA is enabled in the NSE Group. The same NSE Group will also be attached to the spare device, ensuring the configuration remains identical on both devices.

5.1.1-4

Use the serial number to claim the Spare NSE3000 device. After Clicking the “Approve Device” button, select the checkbox “Onboard as HA spare” along with other details in the pop-up window.

Click Save and Approve

5.1.1-5

Primary Device Dashboard with HA Details

Spare Device Dashboard with HA Details

Establish HA Pair Onboarding Directly into the Site

To establish an HA pair by onboarding the spare device directly into the Site, first click the three dots next to the Site name in the System Tree and select Claim Device(s).

Paste the serial number of the spare NSE device. Ensure the correct Site name is selected. The NSE Group attached to the primary device will be attached to the spare device.

5.1.1-9
5.1.1-10

Monitoring Statistics

A banner on the spare device provides a link to the active device, which displays the aggregated data.

5.1.1-11

RV22 Home Mesh Device Enhancements

Edit Email Address of Existing Subscribers

In the initial design, the email address could not be changed once created (instead, the existing Subscriber needed to be deleted). With this new option to “Change Owner,” the user can update the email address, and all configuration and settings on the app will be retained.

Users can edit an existing Subscriber’s email address by clicking on the “Change Owner” hyperlink in the Subscriber’s Basic Information tab.

Software Upgrade for PTP 670/700

Software update is now available for PTP 48670 and 48700 devices. The Software update tab is at the System/Tower/Device levels.

Note: Software version 04-10 or above is required.

Device Name Support During Bulk Import in Enterprise Site

Starting with this release, one can claim devices at the Enterprise Site by uploading a CSV file with serial numbers and device names.

Client Information Enhancements

A few columns are updated for NSE Wired/Wireless clients at the System, Enterprise Site, and NSE device levels.

Clients Under NSE

A new column Model is added under NSE > Clients.

Wireless Clients Under System and Enterprise Site Levels

The Managed Account column has been removed from the Network and Enterprise Site levels.

The Device MAC column is added at all the levels.

Renamed the AP column to Device.

Wired Clients under System and Enterprise Site Levels

Added new columns Device MAC, OS Version, Type, and Model.

Managed Account and User columns are removed.

No Removal of AP Groups Tree

Based on customer feedback, we have decided not to remove the AP Groups Tree: it will continue to be available.

Miscellaneous UI/UX Enhancements

  1. Removed Previous and Next buttons and added Save button like AP Groups for EasyPass.

  1. Added Ethernet Port Speed for Enterprise Devices in the Inventory and Statistics pages under the System and Site levels. Also added Ethernet Port Speed in CSV file while exporting inventory or statistics data.

System Level Inventory and Statistics


Site Level Inventory and Statistics

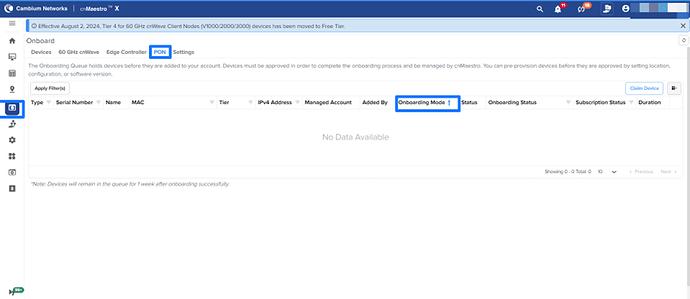

  1. Added Onboarding Mode column to the PON onboarding page.

  1. User must choose Scope field when creating Configuration Groups or Profiles – it is no longer selected as Shared by default. Below is a sample screenshot for the WLAN Profile.

  1. Added Actions drop-down and Export options to the Managed Subscriptions > Devices page.

The Actions dropdown lists the options below:

  1. Delete on Expiry
  2. Swap Subscriptions
  3. Change Subscriptions

    1. The Export option on the Managed Subscriptions > Devices page allows you to download the Devices Subscription data as a CSV file.

    1. Rearranged Configuration Options.

    Supported Cambium Products

    cnMaestro supports the following Cambium Networks products. The software versions are the minimum required to use cnMaestro (not the recommended versions).

    Family Model Version
    60 GHz cnWave V1000 1.0
    V2000 1.2.2-beta3
    V3000 1.0
    V5000 1.0
    cnMatrix EX2K/EX1K 2.0.4-r1
    EX3K 5.0.1
    EX3024-F 6.0-r2
    cnPilot Home cnPilot R200, R200P 4.4.2-R2
    cnPilot R201, R201P 4.4.2-R2
    cnPilot R190V, R190W 4.4.2-R2
    cnPilot R195P 4.5.2
    cnPilot R195W 4.7
    cnRanger Sierra 800 1.0.1.0-r1
    Tyndall 101 1.0.1.0-r1
    Tyndall 201 2.0.0.0-r1
    cnReach N500 5.2.17e
    cnVision Hub 360r, FLEXr 4.6
    Client Micro, Mini, Maxr 4.6
    cnWave 5G Fixed B1000 (BTS) 2.0
    C100 (CPE) 2.0
    Edge Controller N/A 1.0.0
    Enterprise Wi-Fi cnPilot e400/e500 2.5.2-r3
    cnPilot e410/e430w/e600 3.5.2-R4
    cnPilot e501S/e502S 3.2.1-r6
    cnPilot e700 3.8
    cnPilot e425/e505 4.0-r17
    cnPilot e510 3.11.4-r9
    XE3-4 6.4
    XE3-4TN 6.5.1
    XE5-8 6.4.1-r15
    XV2-2 6.1
    XV2-2T0 6.4
    XV2-2T1 6.4.1-r15
    XV2-21X 6.5
    XV2-22H 6.5
    XV2-23T 6.5
    XV3-8 6.0
    X7-35X 7.0-b14
    ePMP 1000 Hotspot ePMP 1000 Hotspot 2.5.2-r3
    ePMP ePMP 1000, Force 180/200 2.6.2
    ePMP 2000 3.0.1
    ePMP Elevate XM/XW 3.2
    ePMP Force 190 3.5
    ePMP Force 300 4.1
    ePMP PTP 550 4.1.1
    ePMP Force 130 5 GHz 4.3.2
    ePMP 3000L 4.3.2
    ePMP Elevate SXGLITE5, LHG5 4.3.2.1
    ePMP Force 130 2.4 GHz 4.4
    ePMP Force 300-19, 19R, 13 4.4
    ePMP 3000 4.4.1
    ePMP PTP 550 E 4.4.2
    ePMP MP 3000 4.5
    ePMP Force 300-13L 4.5.2
    ePMP Force 300-13LC, 22L, 25L 4.6
    ePMP Force 200L 4.7.0
    ePMP 4000, Force 400 GPS, 400 CSM, 425 5.1.0
    ePMP 4600, ePMP4600L, ePMP Force 4600C, ePMP Force 4525, ePMP Force 4500, ePMP Force 4625 5.4.0
    NSE NSE 3000 1.2-b5
    PMP PMP 450i, PMP 450, PMP 450m, PMP 430 SM 22.1.2
    PTP 450, and PTP 450i 22.1.2
    MicroPoP Omni/Sector 22.1.2
    PMP 450v 23.0
    PON TCX16 - 16 port OLT 1.1.0
    TCX08 - 8 port OLT
    SGX00 - Indoor GPON ONT
    SXX00 - Indoor XGSPON ONT
    SGT00 - Outdoor GPON ONT
    SXT00 - Outdoor XGSPON ONT
    PTP PTP 650 01-47
    PTP 670 (650 Emulation) 01-47
    PTP 670, PTP 700 02-67
    PTP 820/850 PTP 820C, 820E, 820F, 820G, 820S
    PTP 850C, 850E 11.9
    RV22 Home Mesh RV22 Home Mesh 1.0
    Xirrus (Enterprise Wi-Fi) XA4-240 8.7.0
    XD2-230 8.7.0
    XD2-240 8.7.0
    XD4-130 8.7.0
    XH2-120 8.7.0
    XH2-240 8.7.0
    XR-620 8.7.0
    XR-630 8.7.0
    XR-2226 8.7.0
    XR-2236 8.7.0
    XR-2247 8.7.0
    XR-2426 8.7.0
    XR-2436 8.7.0
    XR-2447 8.7.0
    XR-4426 8.7.0
    XR-4436 8.7.0
    XR-4447 8.7.0

    Supported Browsers

    cnMaestro supports the following browsers:

    Platform Browser Version
    Linux Firefox 45 and above
    Chrome 49 and above
    MacOS Safari 9 and above
    MS Windows Internet Explorer Deprecated
    Microsoft Edge 44.17763.1.0
    Firefox 45 and above
    Chrome 49 and above

    Significant Fixes

    The following issues have been fixed:

    Id Details
    CNSSNG-35381 Configuration failed: cnAutoAttachRuleEntry index 112 failed to create row.
    CNSSNG-36447 Unable to sort table values in large-small order.
    CNSSNG-39857 Keep scope empty for all profile types instead of shared as default.
    CNSSNG-40066 Offline cnMatrix count integrated into site AP status in enterprise view account.
    CNSSNG-40388 API message is wrong when adding an ePSK entry.
    CNSSNG-40809 Not able to upgrade ePSK file when the expiration date is NONE.
    CNSSNG-40828 Remove the few antennas model while configuring Radio 1 and Radio 2 in Bobcat AP.
    CNSSNG-41161 ‘Hardware Version’ for ePMP Force 4600C is not displaying properly in cnMaestro.
    CNSSNG-41349 Single AP to share with multiple residents in community only workflow.
    CNSSNG-41350 Residents should not be able to change the personal SSID.
    CNSSNG-41374 EPSK registration flow disabled by default in EPSK Cloud when security is mixed or WPA3 only.
    CNSSNG-41387 XMS-C migration does not allow XMS-C tenant name to have a # sign.
    CNSSNG-41785 Switch Ports details grid not showing all VLANs for trunk.

    Known Issues

    The following issues exist:

    Id Issue Details
    CNSSNG-11299 AP Regulatory Channel list support check needed for checking valid channels.
    CNSSNG-11389 Microsoft Edge Browser does not support system OVA file upgrade. Workaround : Use the Google Chrome browser
    CNSSNG-12812 cnPilot R-series dual radio devices (r-201P, r-195W) AP Group country code/SSID configured from overrides getting applied only to 2.4 GHz radio.
    CNSSNG-14030 CBRS race condition: SM “stuck” in cnMaestro during reparenting if import and start occurs as SMs arrive in onboarding queue. Workaround : To avoid this issue, follow the suggested SM reparenting procedures listed in the latest version of Cambium CBRS standalone procedures document.
    CNSSNG-14518 Device Type selection needs to be provided at Site and AP Group for Report generation.
    CNSSNG-15356 If a device has a weak serial number in a non-CBRS build, and the sector is imported first, the device will not contact cnMaestro.
    CNSSNG-15432 Deleting a device in Base Infrastructure and claiming it immediately to another Managed Account returns Device Registration Failed message.
    CNSSNG-15595 cnMatrix Hostname falls back to old Hostname if the template is pushed for the first time (if a Switch Group already exists).
    CNSSNG-15656 Duplicate entries observed in 802.11ax Clients Report.
    CNSSNG-16197 CBSDID search will not work when device was synced from tool without obtaining grant first. Workaround : Perform CBSDID search from domain proxy view on Cloud to obtain mac address, then perform MAC address search on tool to find the device.
    CNSSNG-18856 cnVision Client is not shown under hub. Workaround : Reboot the Client
    CNSSNG-18913 On resizing, the graph/widgets are not properly rendering.
    CNSSNG-18923 After migration Reports Job page is empty due to cached data. Workaround : Clear Cache and Cookies after migration.
    CNSSNG-18927 The configuration push from the Onboarding page is getting device timeout error in ePMP 1000 Hotspot device.
    CNSSNG-19264 Unmanaged expired device approve button is not disabled.
    CNSSNG-19275 Issues related to offline alarm of expired devices.
    CNSSNG-20508 Last Super Administrator deletion should be shown proper error message.
    CNSSNG-20605 User-Defined Overrides (Advanced) should be handled from Switch Groups > Switches > Actions > Configuration tab.
    CNSSNG-20745 AP Count is -1 in Anchor when deregistering the device from Anchor.
    CNSSNG-20820 After server upgrade, device throws error [Invalid CBSD ID and Grant ID], even though the Domain Proxy shows the device is registered.
    CNSSNG-21068 Not able to deregister or delete the SM when PMAC mismatched (SM reported different PMAC). Workaround: Reinitialize the SM from inside the sector of the AP, not by directly searching for the SM in the tool; then deregister and delete the device.
    CNSSNG-21264 Auto refresh does not work when Site/Tower/Device details are updated in Network level map.
    CNSSNG-21271 SM status is missing in AP details on map.
    CNSSNG-21345 RF Statistics related information should not be available in reports for XV type device.
    CNSSNG-21396 Issues related to cnMatrix onboarding overrides.
    CNSSNG-23732 Min Data Rate and Multicast Data Rate configuration push always sets default for both bands.
    CNSSNG-24529 Multi-floor issue with Firefox browser.
    CNSSNG-24823 Device overrides and config apply will not work after Migration from 3.1.0 to 3.1.1 due to cache.
    CNSSNG-24826 Site Floorplan: in Edit mode, able to drag devices outside the boundary without an error.
    CNSSNG-25071 If ePSK entries exist under an MSP WLAN, then upon disabling MSP in the account, the MSP WLAN ePSK count persists.
    CNSSNG-25150 AOS device Configuration Job times out if Device is in DHCP.
    CNSSNG-25238 AOS device WebSocket does not disconnect for an X account downgraded to Pure ESS after Retention expired.
    CNSSNG-25758 Able to see cnPilot R-series AP Groups in Enterprise View.
    CNSSNG-26188 Error on deleting NSE device from the inventory page.
    CNSSNG-26911 NSE configuration page should use Management IP as clickable link, not WAN Address.
    CNSSNG-28140 Graphs alignment issues when menu bar is expanded.
    CNSSNG-28151 Total device count and count displayed in Recommended Software metrics do not match.
    CNSSNG-28282 Scheduled Reports for Expired device is completed.
    CNSSNG-28326 AP Groups/Sites/Towers list all types of devices while generating reports.
    CNSSNG-28544 While moving from one managed account to another, PTP device details are not updated properly.
    CNSSNG-30040 Change Bulk Edit and Import labels.
    CNSSNG-30142 Some of the time ranges are missing for NSE performance graphs.
    CNSSNG-30691 Should not allow configuration of duplicate subnet in remote subnet and local subnet.
    CNSSNG-30696 Changes required if the IKE version 1 is selected.
    CNSSNG-30927 Modify the remote subnet and local subnet fields under IPsec to have the option to enter subnet in list form.
    CNSSNG-31006 If the site contains NSE, cnMatrix, and Wi-Fi AP, the devices are not sorted correctly.
    CNSSNG-31029 For responder role, Site-to-Site VPN tunnel, remote address field is not present.
    CNSSNG-31131 Navigation is broken when accessed from Threats bar graph in System and Home in Enterprise View.
    CNSSNG-31613 Reporting layer memory usage.
    CNSSNG-31626 Device type is blank for NSE in System Level reports.
    CNSSNG-32313 Wired client list is empty when navigated back from a client.
    CNSSNG-33336 Failed Reports are shown in green color.
    CNSSNG-33442 Audit logs are not generated while creating graphical report templates.
    CNSSNG-33660 The template should have a scroll bar.
    CNSSNG-33861 Completed reports should transfer to Completed column immediately when the jobs complete.
    CNSSNG-33908 PMP performance reports have some fields missing.
    CNSSNG-36483 Application and Vulnerability tabs are missing for the wireless clients when NSE is offline.
    CNSSNG-36717 Assist is not showing any report for CPE until manual support.
    CNSSNG-36723 Enabling Show Interfering Sectors should not display all the towers under the network.
    CNSSNG-36782 Home sites are not listed while moving devices from inventory page.
    CNSSNG-36849 Chile time zone is missing.
    CNSSNG-36850 Issue with Device going out of sync with PPPoE connection.
    CNSSNG-38801 Device not moving to correct site/SM when changing subscriber.
    CNSSNG-39026 Remaining time is wrong for End of Day (Midnight) and End of Week (Saturday) for session duration.
    CNSSNG-39617 Packet capture feature not working.
    CNSSNG-39687 Device limit exceeded page is not shown when MAX client count is reached with Microsoft Azure + GA.
    CNSSNG-40814 Port 6 should be shown as HA in dashboard port status.
    CNSSNG-41241 No HA related details are captured in Audit Logs.
    CNSSNG-41359 Incorrect supported channel getting listed for radios for device XV3-8 family.
    CNSSNG-41503 Unable to see “POWER BOOTLOOP detected” event.
    CNSSNG-41600 HA State goes to fault when no clients are connected.
    CNSSNG-41700 NSE spare device is not upgrading to software version of primary device while onboarding in site level from MSP login View.
    CNSSNG-41725 When click on the count of Alarms in tools, navigating to Notification>Alarms, but the filter is not applied based on the severity.
    CNSSNG-41746 Additional channels from 149-173 are displayed on XV2-2T1 device for country Qatar.
    CNSSNG-41759 Need to handle hostname as its MAC address on dashboards when device receives " - " as its hostname.
    CNSSNG-41780 Failed to create configuration update job errors are seen in Audit logs.
    CNSSNG-41787 Spare device showing duplicate vulnerability data in system level.
    CNSSNG-41812 Config is not pushed to Spare Device after Migration from 5.1.0 to 5.1.1.
    CNSSNG-41870 Reboot from tree menu displays error: “Failed to send Reboot command to device(s)” for PTP8xx devices.

    Where to Get Help

    There are several places to get help with cnMaestro.

    Cambium Community : The cnMaestro Forum provides the best place to ask questions and get up-to-date information.

    Cambium Support : The Cambium Support team is available 24x7 to answer questions and resolve issues.

1 Like

This topic was automatically closed 90 days after the last reply. New replies are no longer allowed.
