cnMaestro On-Premises version 6.0.0 fully supports PMP450v radios

Products cnMaestro
1

With the release of cnMaestro On-Premises version 6.0.0, Cambium now has an On-Premises Maestro release that fully supports multiple component carriers for 450v radios, bringing it inline with the current cloud software. While prior On-Premises version had basic 450v support for upgrades, single component carrier statistics, etc, this version supports statistics, dashboard, etc, for up to 3 component carriers.

Here is an excerpt from page 17 of the cnMaestro release notes:

Multiple Component Carriers Support in PMP 450v

cnMaestro now supports displaying Multiple Component Carriers for the PMP 450v platform across various dashboards and views.

The Access Point (AP) and Subscriber Module (SM) can use multiple component carriers simultaneously. The 4×4 PMP 450v supports up to four component carriers, each up to 40 MHz wide, providing flexibility to adapt to available spectrum in different coverage areas. The 450v is available in both a 4×4 AP and a 4×4 SM. These radios support multiple carriers (two 2×2 carriers), enabling placement of four component carriers.

For a detailed explanation of the difference between Carriers and Component Carriers, refer to Chapter 1: Configuring Radio Parameters in the PMP/PTP 450 Series Configuration
Guide

Note: This enhancement is supported by the PMP 450v devices running version 24.2 and above.

Enhancements include:

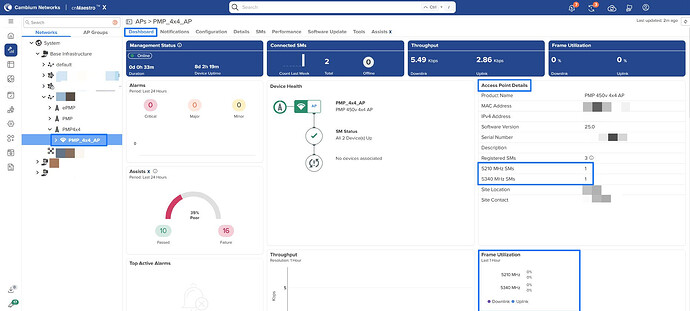

  • PMP 450v 4×4 AP

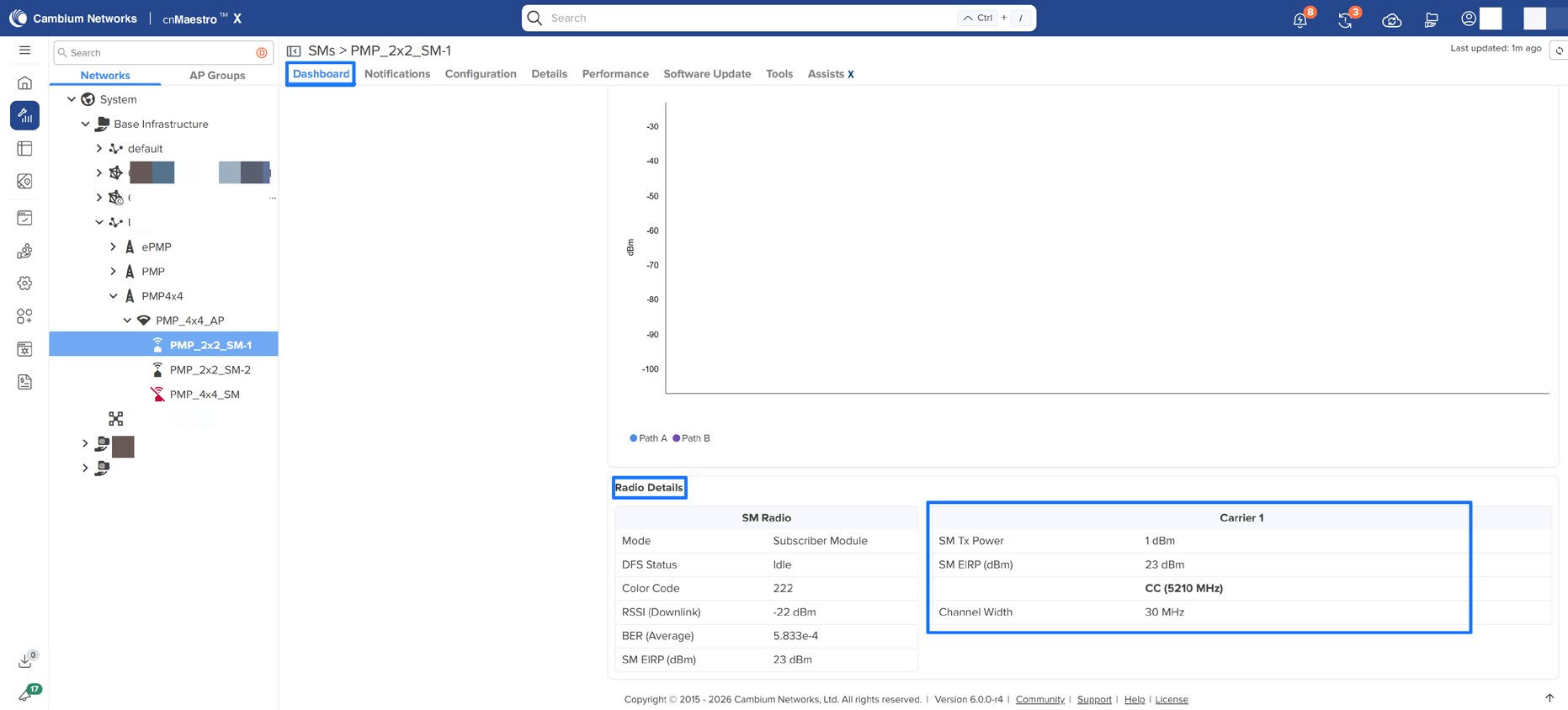

  • PMP 450v 4×4 SM / PMP 450v 2×2 SM

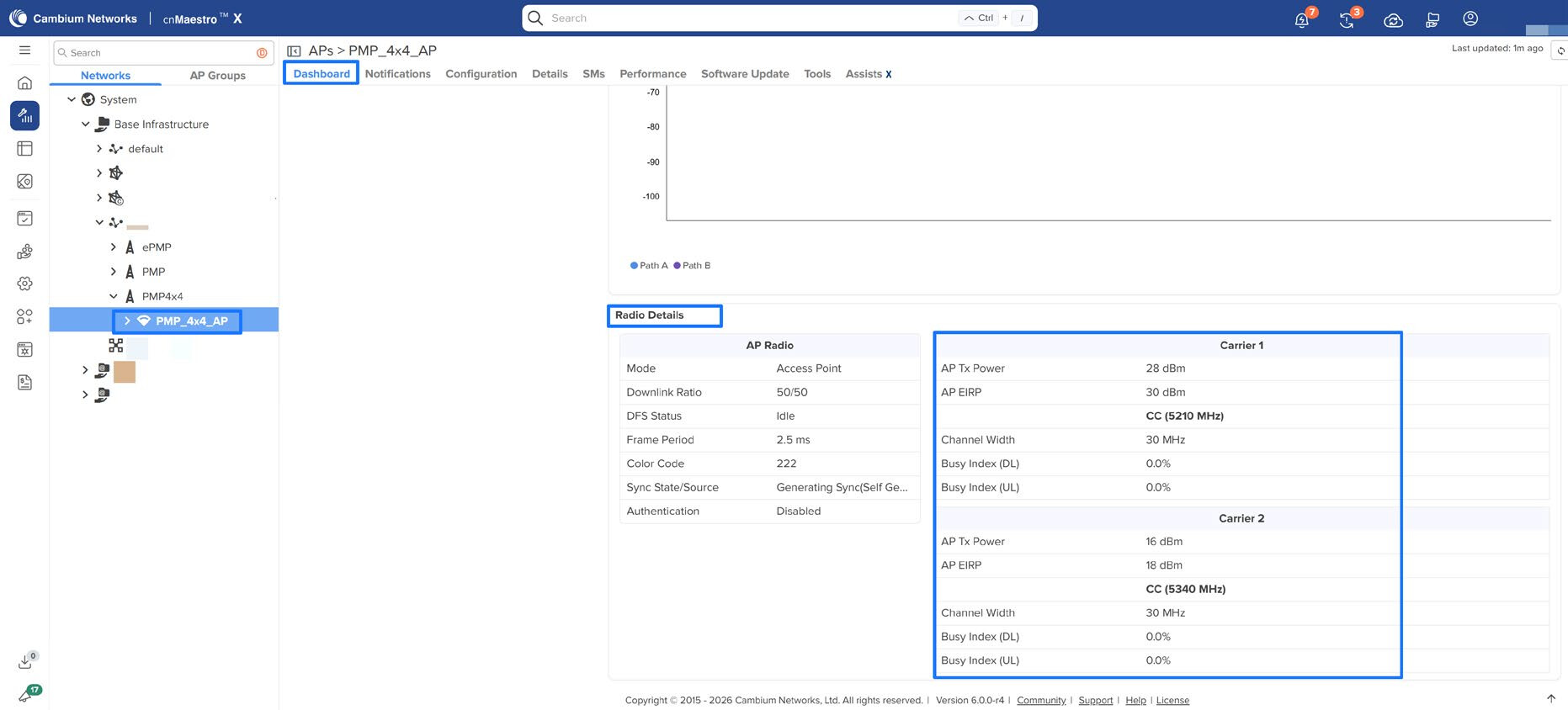

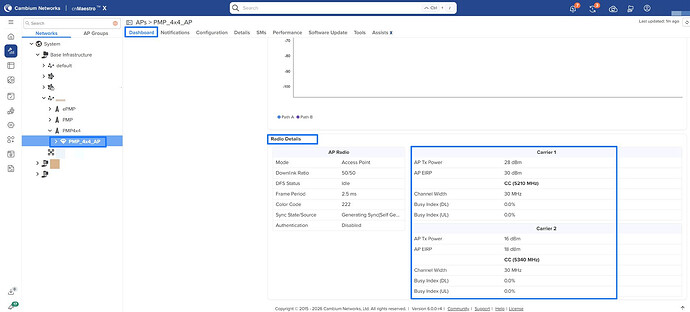

    • Dashboard > Radio Details
      image1863×844 117 KB
    • Details > Overview > Wireless section
    • Performance tab > Frame Utilization—Downlink and Uplink graphs
    • Performance tab > DL RSSI Imbalance, Modulation (Downlink/Uplink), BER Path A, BER Path B graphs

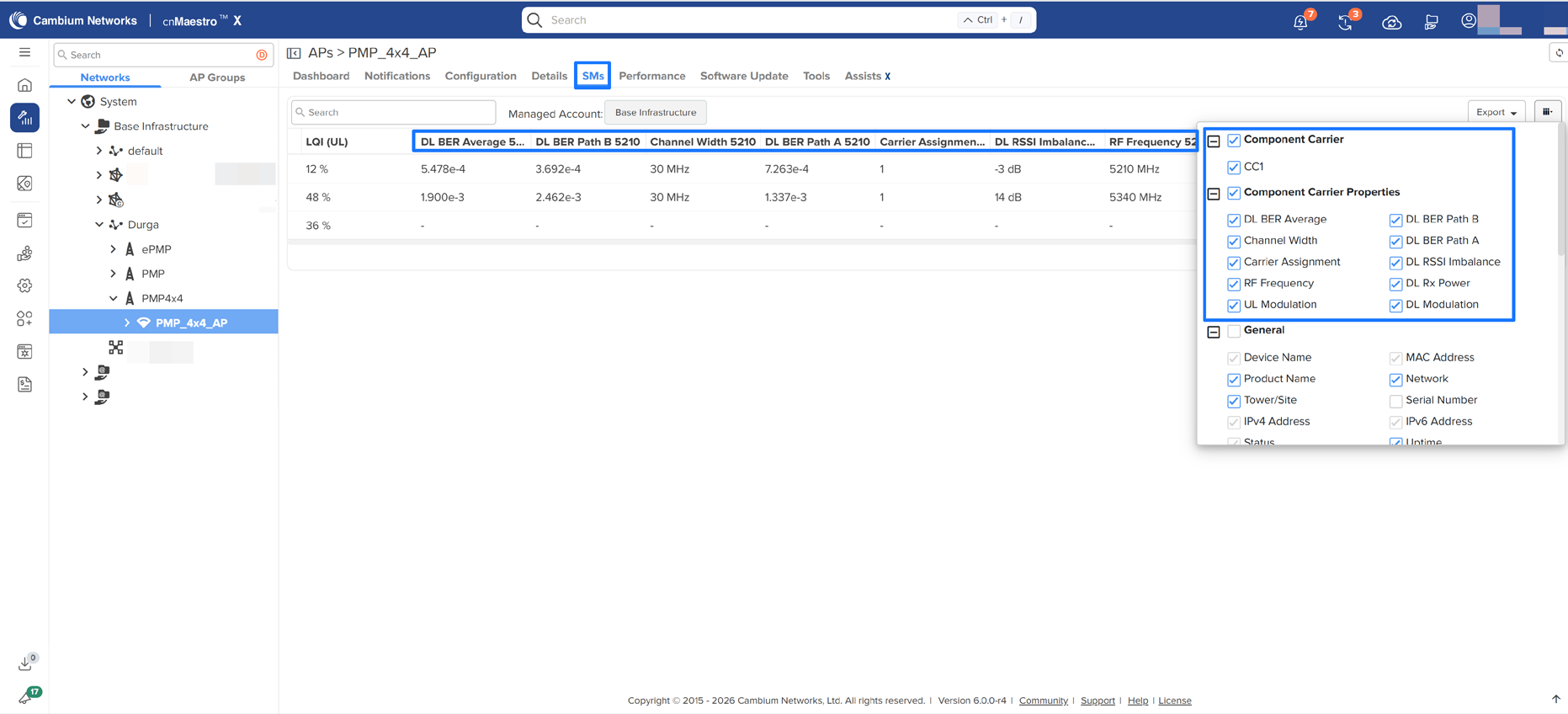

  • Additional Views
    • Tower Dashboard > Device Status > Frequency
    • Network Services > Spectrum Analyzer > Frequency
    • Map > Details > Frequency
