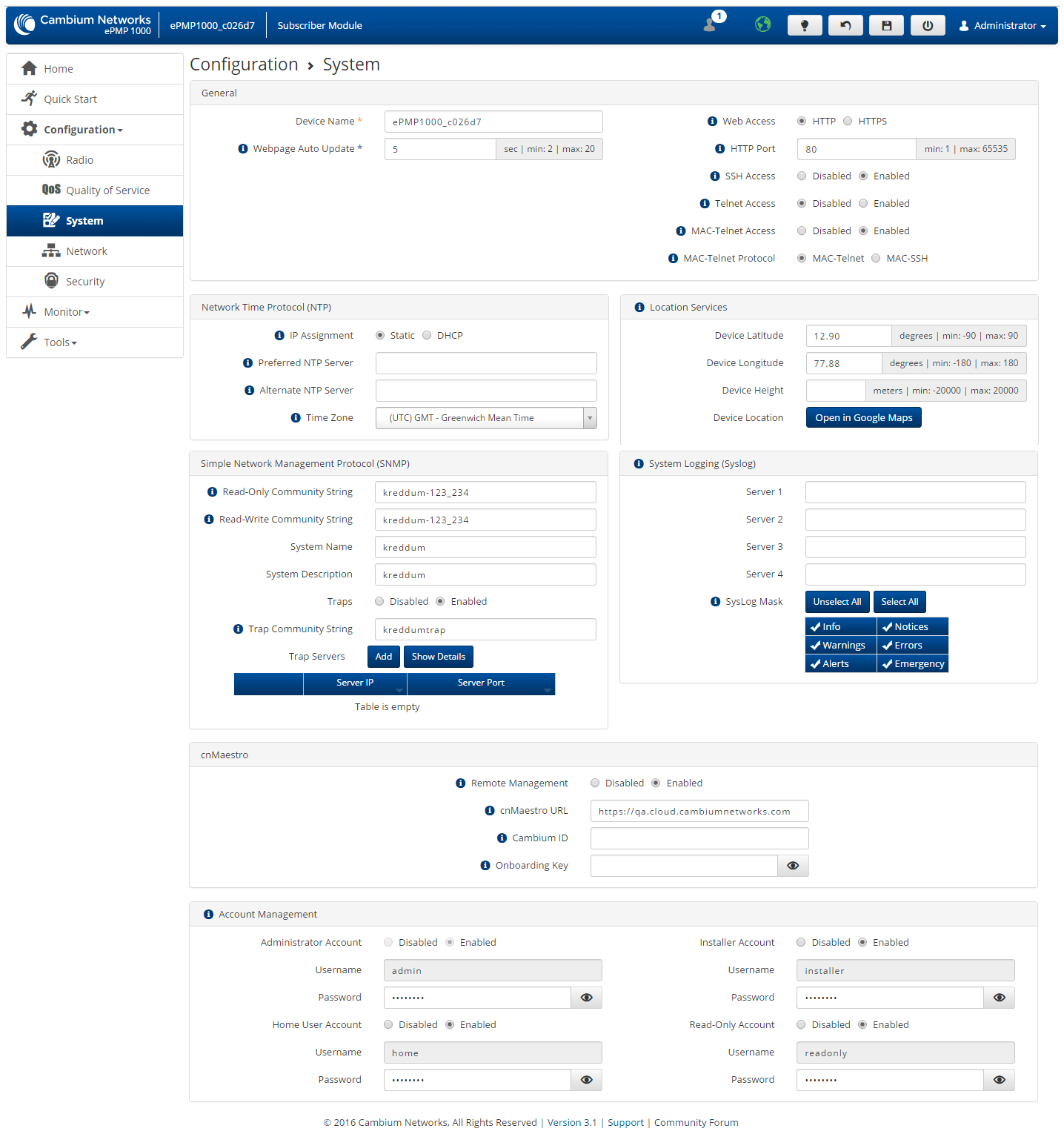

The SM’s System page is used to configure system parameters, services, time settings, SNMP and syslog.
|
Attribute |
Meaning |
|
|
General |
||
|
Device Name |
The Device Name is used to identify the SM on the network, and may be retrieved by a NMS such as the Cambium Network Services Server (CNSS). |
|
|
Webpage Auto Update |
Configure the interval for which the device retrieves system statistics for display on the management interface. For example, if this setting is configured to 5 seconds, the statistics and status parameters displayed on the management interface will be refreshed every 5 seconds (default). Webpage Auto Update is a session only configuration change. It is updated with the <Enter> key and is not savable when using the save button. |
|
|
Web Access |
HTTP: Access to the device management GUI is conducted via HTTP. HTTPS: Access to the device management GUI is conducted via HTTPS. |
|
|
HTTP Port |
If Web Service is set to HTTP, configure the port which the device uses to service incoming HTTP requests for management GUI access. |
|
|
HTTPS Port |
If Web Service is set to HTTPS, configure the port which the device uses to service incoming HTTPS requests for management GUI access. |
|
|
SSH Access |
Disabled: If the SSH port to the device is ‘Disabled’, access to the device through SSH is not possible. Enabled: If the SSH port to the device is ‘Enabled’, Cambium engineers can access the device through SSH which enables them to login to the radio and troubleshoot. SSH port is ‘Enabled’ by default. |
|
|
Telnet Access |
Disabled: CLI access via telnet is not allowed for the device. Enabled: CLI access via telnet is allowed for the device. |
|
|
MAC-Telnet Access |
Disabled: Disables connections to the radio on the link layer via MAC address from RouterOS or mactelnet-enabled devices. Enabled: Enables connections to the radio on the link layer via MAC address from RouterOS or mactelnet-enabled devices.
|
|
|
MAC-Telnet Protocol |
MAC-Telnet: Use the MAC-Telnet subservice for access MAC-SSH: Use the secured MAC-SSH subservice for access |
|
|
Network Time Protocol (NTP) |
||
|
IP Assignment |
Static: The device retrieves NTP time data from the servers configured in fields Preferred NTP Server and Alternate NTP Server. DHCP: The device retrieves NTP time data from the server IP issued via a network DHCP server. |
|
|
Preferred NTP Server |
Configure primary NTP server IP address from which the device retrieves time and date information. |
|
|
Alternate NTP Server |
Configure secondary or alternate NTP server IP address from which the device retrieves time and date information. |
|
|
Time Zone |
The Time Zone option may be used to offset the received NTP time to match the operator’s local time zone. |
|
|
Location Services |
||
|
Device Latitude |
Configure Latitude information for the device in decimal format. |
|
|
Device Longitude |
Configure Longitude information for the device in decimal format. |
|
|
Device Height |
Configure the Height above sea level for the device, in meters. |
|
|
Device Location |
Hyperlink to display the device location on Google Maps |
|
|
Simple Network Management Protocol (SNMP) |
||
|
Read-Only Community String |
Specify a community string that allows a Network Management Station (NMS) such as the Cambium Networks Services Server (CNSS) to read SNMP information. No spaces are allowed in this string. This password will never authenticate an SNMP user or an NMS to read/write access. The SNMP Read-only Community String value is clear text and is readable by a packet monitor. |
|
|
Read-Write Community String |
Specify a community string that allows a Network Management Station (NMS) to not only read SNMP information but also write SNMP values that are defined as writeable in the radio. No spaces are allowed in this string. |
|
|
System Name |
Specify a string to associate with the physical module. This parameter can be polled by the Cambium Networks Services Server (CNSS) or an NMS. Special characters are supported. |
|
|
System Description |
Specify a description string to associate with the physical module. This parameter can be polled by the Cambium Networks Services Server (CNSS) or an NMS. Special characters are supported. |
|
|
Traps |
Disabled: With this setting, the radio does not send traps Enabled: Setting this enables the radio to send SNMP traps to the configured SNMP Trap Server. |
|
|
Trap Community String |
Specify a control string to match the Trap Community String on the SNMP Trap server. No spaces are allowed in this string. |
|
|
Trap Servers |
The SNMP Trap Servers table contains all of the SNMP Trap servers the radio can send SNMP traps. |
|
|
Server IP |
Specify up to four SNMP Trap Servers to which the device will send SNMP traps. |
|
|
Server Port |
Configure port which the device uses to send SNMP traps. |
|
|
System Logging (Syslog) |
||
|
Server 1-4 |
Specify up to four syslog servers to which the device sends syslog messages. |
|
|
SysLog Mask |
Configure the levels of syslog messages which the devices send to the servers configured in parameters Syslog Server IP 1-4 |
|
|
cnMaestro |
||
|
Remote Management |
When Enabled, the device will be managed by cnMaestro - the Cambium Remote Management System, which allows all Cambium devices to be managed in the cloud. |
|
|
cnMaestro URL |
Configure the URL of cnMaestro. The default value is https://cloud.cambiumnetworks.com. |
|
|
Cambium ID |
Configure the Cambium ID that the device will use for on-boarding on to cnMaestro. |
|
|
Onboarding key |
Configure the password/key associated with the Cambium-ID that the device will use for on-boarding on to cnMaestro. |
|
|
Account Management |
||
|
(Administrator) Username |
Read-only listing of available login levels. · ADMINISTRATOR, full read write permissions. · INSTALLER, permissions to read and write parameters applicable to unit installation and monitoring. · HOME USER, permissions only to access pertinent information for support purposes. · READONLY, permissions only to view the Monitor page. |
|
|
(Administrator) Password |
Configure a custom password configuration for each user to secure the device. The password character display may be toggled using the visibility icon . |
|
|
Installer Account |
Disabled: The disabled user is not granted access to the device management interface. The administrator user level cannot be disabled. Enabled: The user is granted access to the device management interface. |
|
|
(Installer) Username |
Read-only listing of available login levels: · INSTALLER, permissions to read and write parameters applicable to unit installation and monitoring. · HOME USER, permissions only to access pertinent information for support purposes. · READONLY, permissions only to view the Monitor page. |
|
|
(Installer) Password |
Configure a custom password configuration for each user to secure the device. The password character display may be toggled using the visibility icon . |
|
|
Home User Account |
Disabled: The disabled user is not granted access to the device management interface. The administrator user level cannot be disabled. Enabled: The user is granted access to the device management interface. |
|
|
(Home) User Username |
Read-only listing of available login levels: · HOME USER, permissions only to access pertinent information for support purposes. · READONLY, permissions only to view the Monitor page. |
|
|
(Home) User Password |
Configure a custom password configuration for each user to secure the device. The password character display may be toggled using the visibility icon . |
|
|
Read-Only Account |
Disabled: The disabled user is not granted access to the device management interface. The administrator user level cannot be disabled. Enabled: The user is granted access to the device management interface. |
|
|
(Read-Only) Username |
READONLY, permissions only to view the Monitor page. |
|
|
(Read-Only) Password |
Configure a custom password configuration for each user to secure the device. |
