Is it possible to do Single SSID with multiple VLANs with PSK

Colin_Lindberg · June 12, 2025, 10:21pm

Is it possible to create a single SSID in cnMaestro, that will assign a host to a specific VLAN based on a PSK?

So if the PSK “Apple” is used the host will go to VLAN 10, if PSK “Banana” is used the host will go to VLAN 20, etc…

KumarK · June 13, 2025, 1:35am

@Colin_Lindberg yes this is possible - please search for ePSK feature in the help.

Nemallapudi_Indrared · June 13, 2025, 6:50am

Hi @Colin_Lindberg , This can be configured under WLAN.

Path: Configuration > Wi-Fi Profiles > WLANs > ePSK

Regards,
Indra

Colin_Lindberg · June 14, 2025, 5:00pm

My understanding of the ePSK, was that the password was auto-generated, and is not able to be specified. Is that incorrect?

Chandrashekhar · June 18, 2025, 6:07am

Hi Colin,

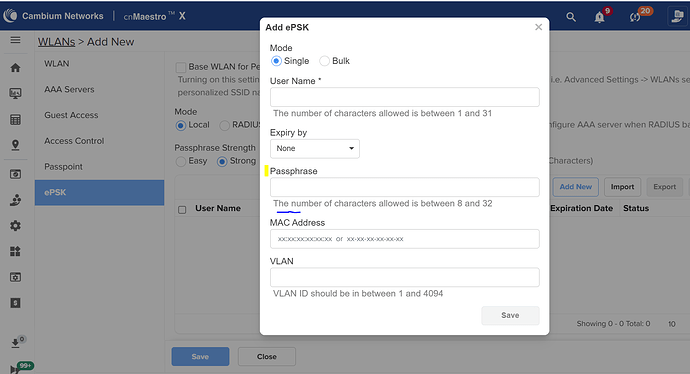

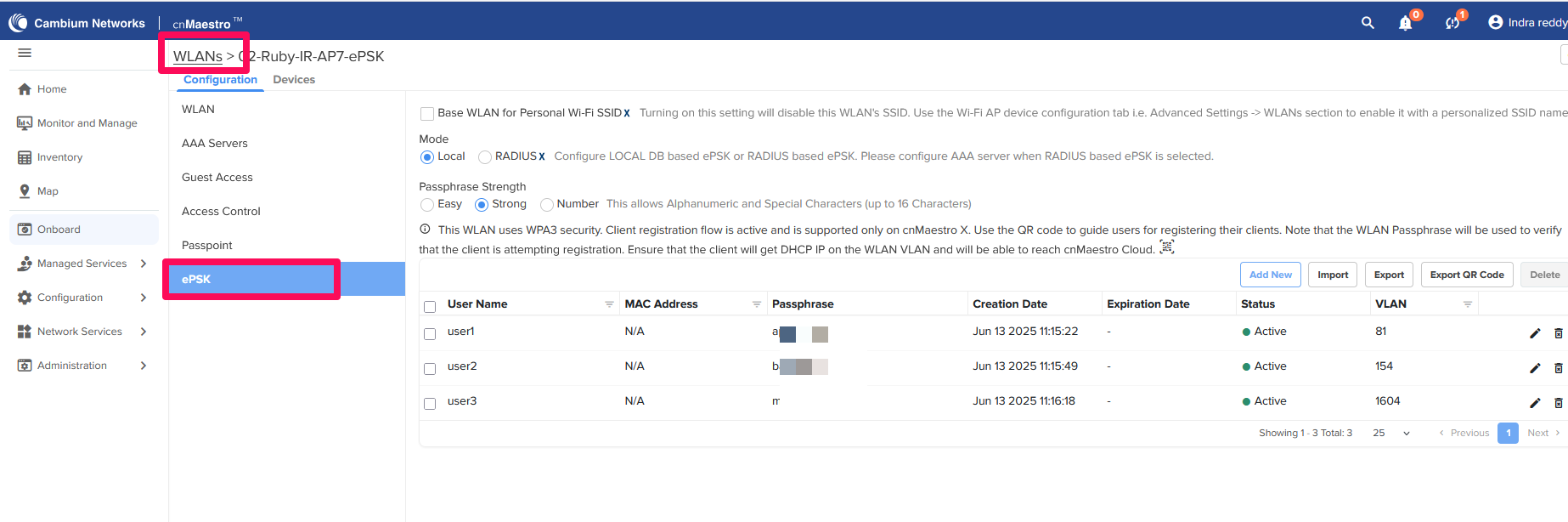

You can specify a password in Single mode, please see screenshot below for help.
You can import specified passwords as well.
Existing password can be edited.
Only bulk mode generates Random passwords.
