A new release of the LINKPlanner is available from the download site.
This release is only for PTP 700 and certain PTP 820 configurations. For the latest updates on all products, please visit the online LINKPlanner
Path profile requests are supported only for LINKPlanner versions 5.7.0 and later.
Mac OS is no longer supported. Please use the online version.
The key features of 5.7.4 are:
New or changed features
PTP 700

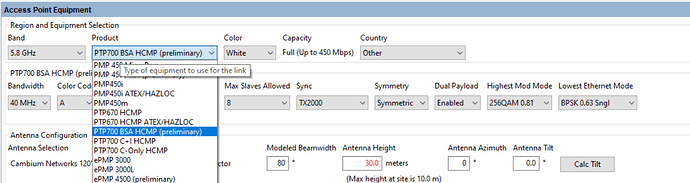

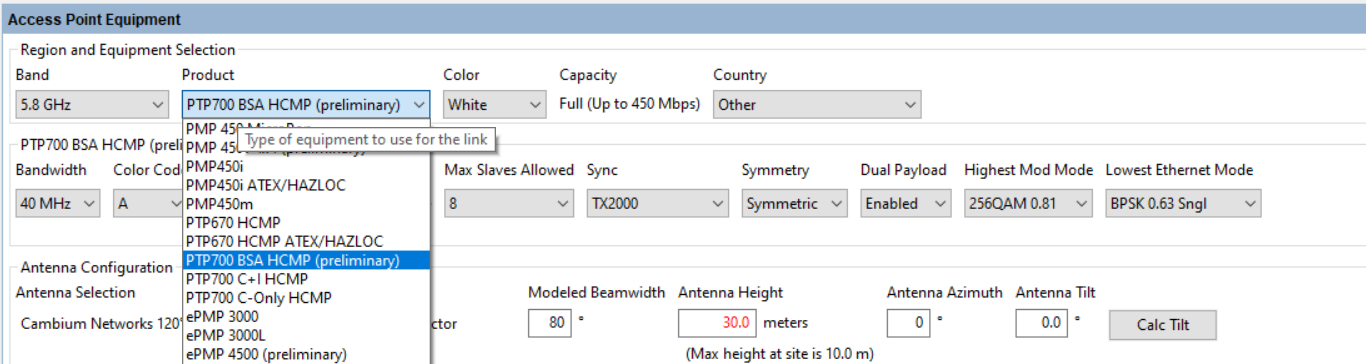

Added PTP 700 BSA HCMP product in PMP mode
Select the PTP700 BSA HCMP product in 4.7 GHz to 5.8 GHz band.
PTP 700 BSA HCMP antenna operates in two modes. First, it uses the acquisition antenna pattern to check whether the SM can be acquired. Once the acquisition condition is fulfilled, it switches to the directional antenna pattern for performance predictions.
PTP 700 C+I HCMP and PTP 700 C-Only HCMP products are supported as SMs.
Added OTA license key C000070K013 as an extra to the PTP 700 and PTP78 700 HCMP products
Retired E1/T1 support for PTP 670/700 products.
PTP 820/850

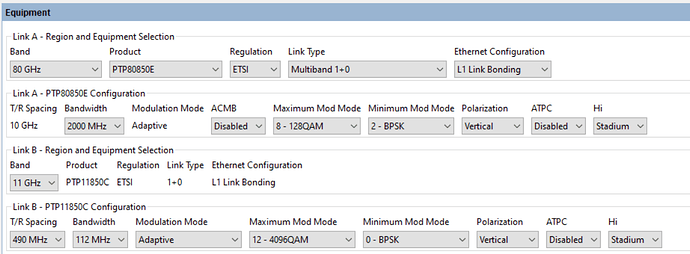

Added PTP 850E Multiband support with 11 GHz PTP 850C
The PTP 850E multiband with PTP 850C now supports the 11 GHz band, along with the 18 and 23 GHz bands.
Note that Co-Polar (ACCP) is not supported, as the 11 GHz multiband antenna does not allow this configuration.
Added Canada regulatory in the 8 GHz and 15 GHz bands for PTP 820A with RFU-D/RFU-D HP products
Extended TX/Rx frequency range for PTP 850C in 7 GHz band
Tx/Rx 161F parts are added to the PTP 850C in 7 GHz band.
Updated PTP 820/850 products to Release 13.1
New MRMC Script 4575 is added for PTP 820A with RFU-D HP product. This MRMC script is applies to ETSI 112 MHz bandwidth and ACCP configurations
Added PSU parts to the default BOM of PTP 820/850 products when DC power is selected
When DC power is selected, appropriate PSU parts are now automatically included in the default BOM for PTP 820/850 products.
Removed MC-ABC key from default BOM of PTP 850C 1+0 Vertical configuration.
In Release 13.0, the MC-ABC key requirement for the PTP 850C 1+0 Vertical configuration has been removed.
Retired PTP 820F in all frequency bands
Retired IF cable N000082L159 and Flexible Twist 58009279001, replaced with IF cable N000082L253 and Flexible Twist 58009279002
Replaced WB3616 part with WB3616HK in PTP 820G default BOM
Bug Fixes
- Ensured that the correct line cords are added for the C000000L141 PoE when included in the BOM
- Removed Multiple Ethernet with LAG option for PTP 850C 2+0 and 4+0 links
- Corrected the V2000 bracket part number under the optional extras
- Removed TDM Optimisation option from PTP 670/700 HCMP products
- Removed C000065L002 part from optional extras of PTP 820/850 products
