[New Feature - 5.11.0] Antenna gain profile

Products ePMP
1

Applicable versions: 5.11.0 and above
Applicable platforms: AX radios with integrated antenna

Traditionally, Cambium radios used a fixed antenna gain value (e.g., 25 dBi) across the entire operating frequency range. While simple, this approach does not reflect how real antennas behave – their gain varies with frequency.

The Antenna Gain Profiles feature introduces a more accurate way to handle antenna performance by using up to 8 data points per antenna that map gain vs. frequency. This allows the system to calculate the actual gain at a specific operating frequency and adjust transmit power accordingly.

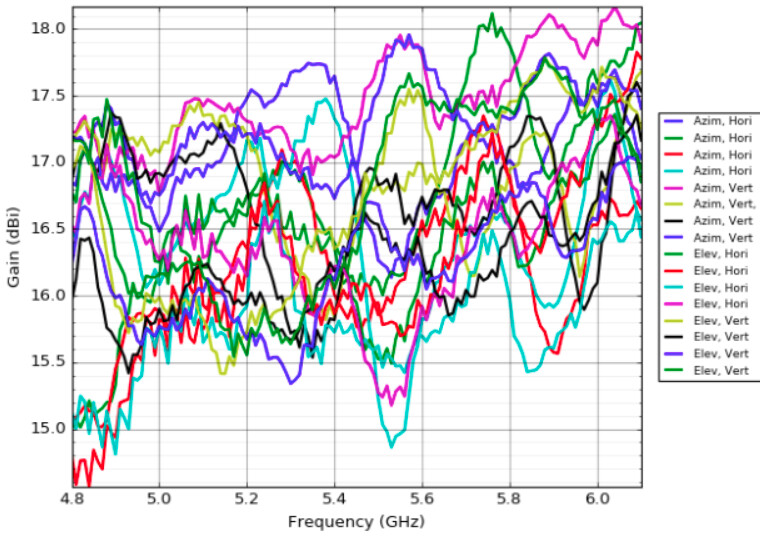

ePMP 4500 8x8 5GHz Integrated Sector Antenna 17dB Gain

image762×545 159 KB

Imprortance

  • More realistic modeling: Antenna gain is no longer treated as a flat number but as a curve derived from real antenna measurements.

  • Better regulatory compliance: Transmit power (EIRP) calculations are based on true antenna performance, ensuring limits are respected.

  • Optimized performance: Where the antenna is less efficient at a frequency, the radio can safely increase transmit power to compensate.

Feature operation

  1. Profiles per antenna
    Each Cambium antenna has a profile derived from its lab-measured gain chart. The profile contains up to 8 points that map gain across frequencies.

  2. Gain calculation
    The system uses linear interpolation between the points. Precision is 1 dB for now, which simplifies implementation without sacrificing accuracy.

  3. Automatic adjustments

  • At driver start or when frequency changes, the gain is recalculated.

  • If the actual antenna gain is lower than the maximum expected, the radio can boost TX power by the delta.

  • This happens in the background – no GUI controls are required.

  1. Supported integrations
    The feature has been integrated with key subsystems like ACS, DCS, and DFS. It also works with AP and SM modes.

Improvements

  • Radios will automatically apply the antenna profile in the background.

  • No additional configuration is required.

  • Users benefit from optimized TX power and more accurate EIRP validation without needing to manage profiles manually.
