Override Ethernet Configuration

[InesRC]

Hello cambium community,

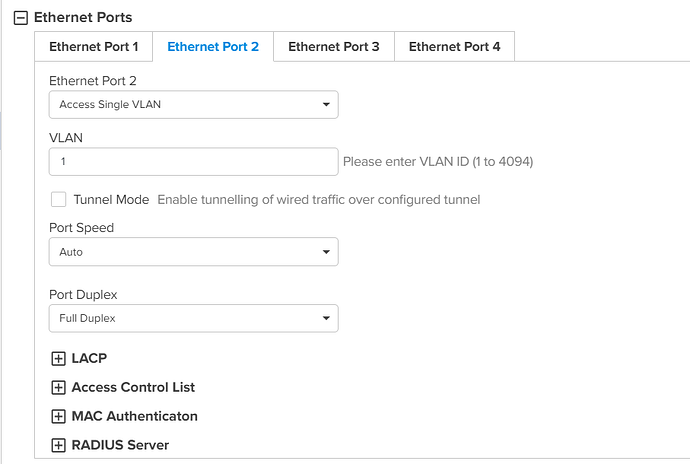

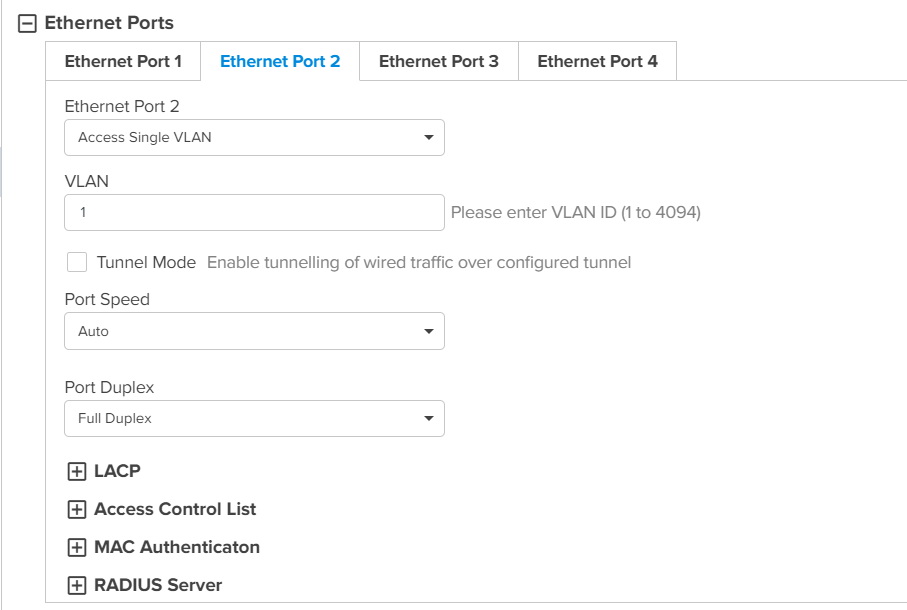

I’m wondering if there’s a way to override the configuration of the Network–>Ethernet port 2-4 of the AP Group (kind of User Defined Override)

Here →

I’m using ePSK on a WLAN to segment by areas some devices, and i want to make the ports 2-3 been Access Ports and depending on the area choose the VLAN they must belong to.
I’d like to use the same AP Group and just override on each AP the vlan for Access ports 2-3
I know I can make different AP Groups but as I’ll be using around 100 Vlans I ratter use 1 AP Group

Hope you can help me
Thanks in advance

[KumarK]

@InesRC , did you check out this post?

XV2-22H Port VLAN Settings REQUEST

Hi @Springs If you want to use different VLANs on various Ethernet ports across multiple APs, you can utilize the “Variables and Macros” feature available in cnMaestro. This can be found in the AP group settings under “User-Defined Overrides.” section. Add the following macro to the ‘User-Defined Overrides’ section in order to have Eth2 & Eth3 VLAN configuration available for each AP in the configuration section. ! interface eth 2 switchport access vlan ${Eth2_VLAN=1} ! interface eth 3 s…

[InesRC]

Thank you so much @KumarK !
It seems I don’t know how to research.
