Hello Guys,
Can anyone help me? I need your help. I have a Force 300-16 and I have a Force 180. Can you tell me if it is possible to configure point to point between the two radios?
Hi @BUDDHADEV_MAITY ,
yes it is possible.
Please refer to user guide
Thank you!
1 Like
But I am getting the Error the error is (Not compatible software).

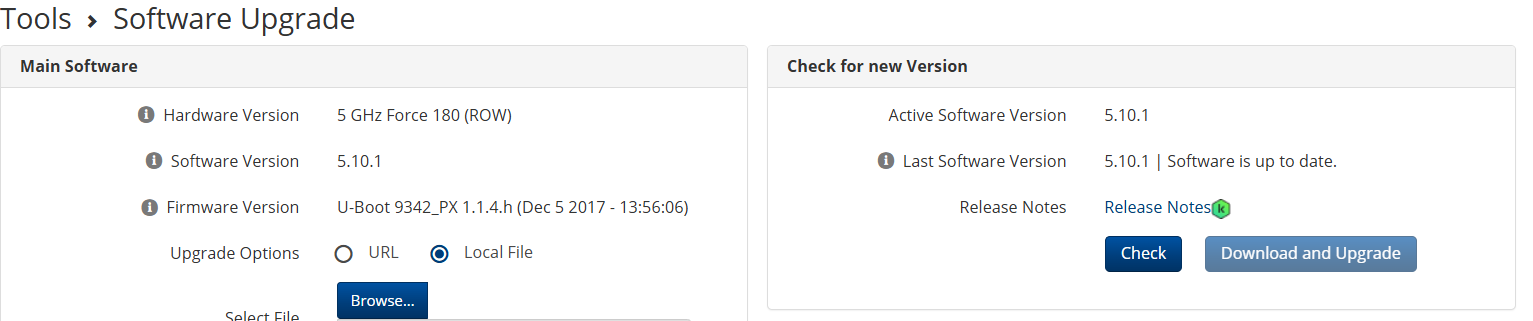

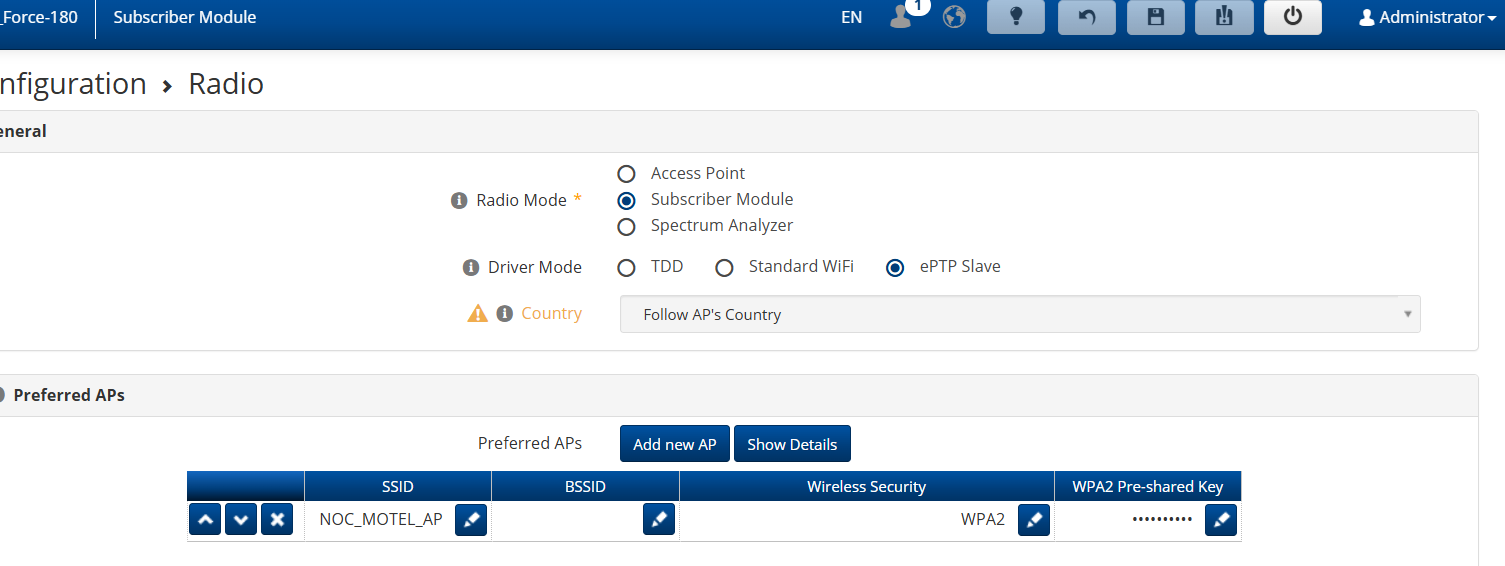

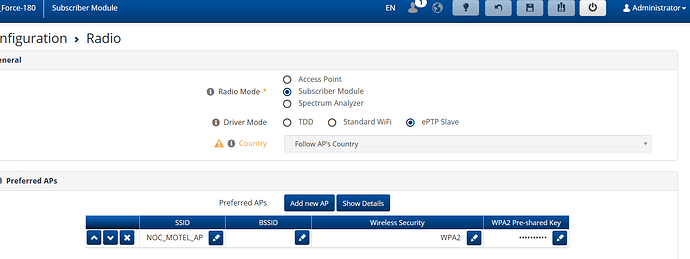

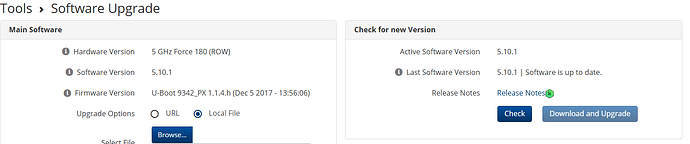

Are both radios using firmware 5.10.x? Have you tried resetting both radios to factory defaults and reconfiguring using the quick configuration tool? Are you trying to use ePTP mode? I donât believe that you can use ePTP mode between different versions of ePMP radios. Try using TDD-PTP mode.
1 Like
Please can you share me a screenshort

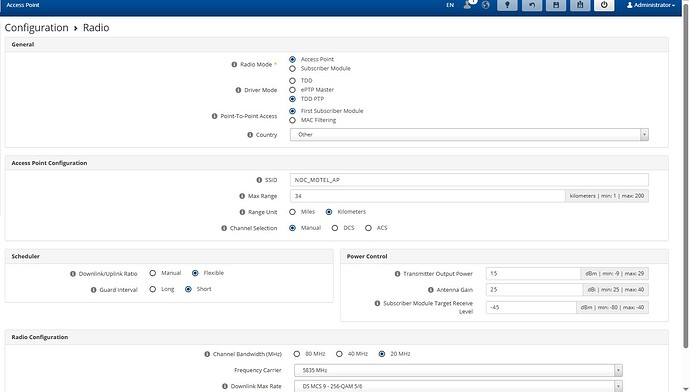

Please try making the F300 the access point TDD-PTP master, and the F180 the slave. If that doesnât work, then Iâm not sure what else to try.
Please check and let me know

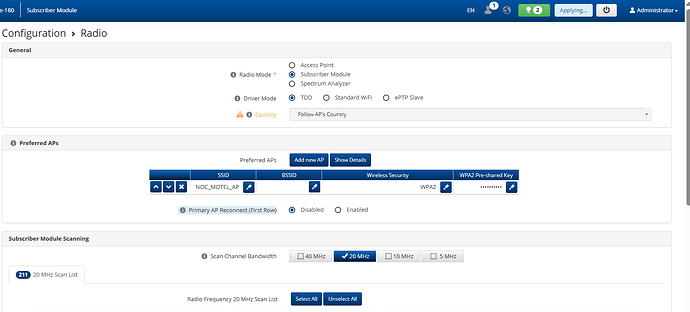

Set the F180 to be TDD.
I guess they donât work together⌠try using a pair of the same model ePMP radios for your PtP link.

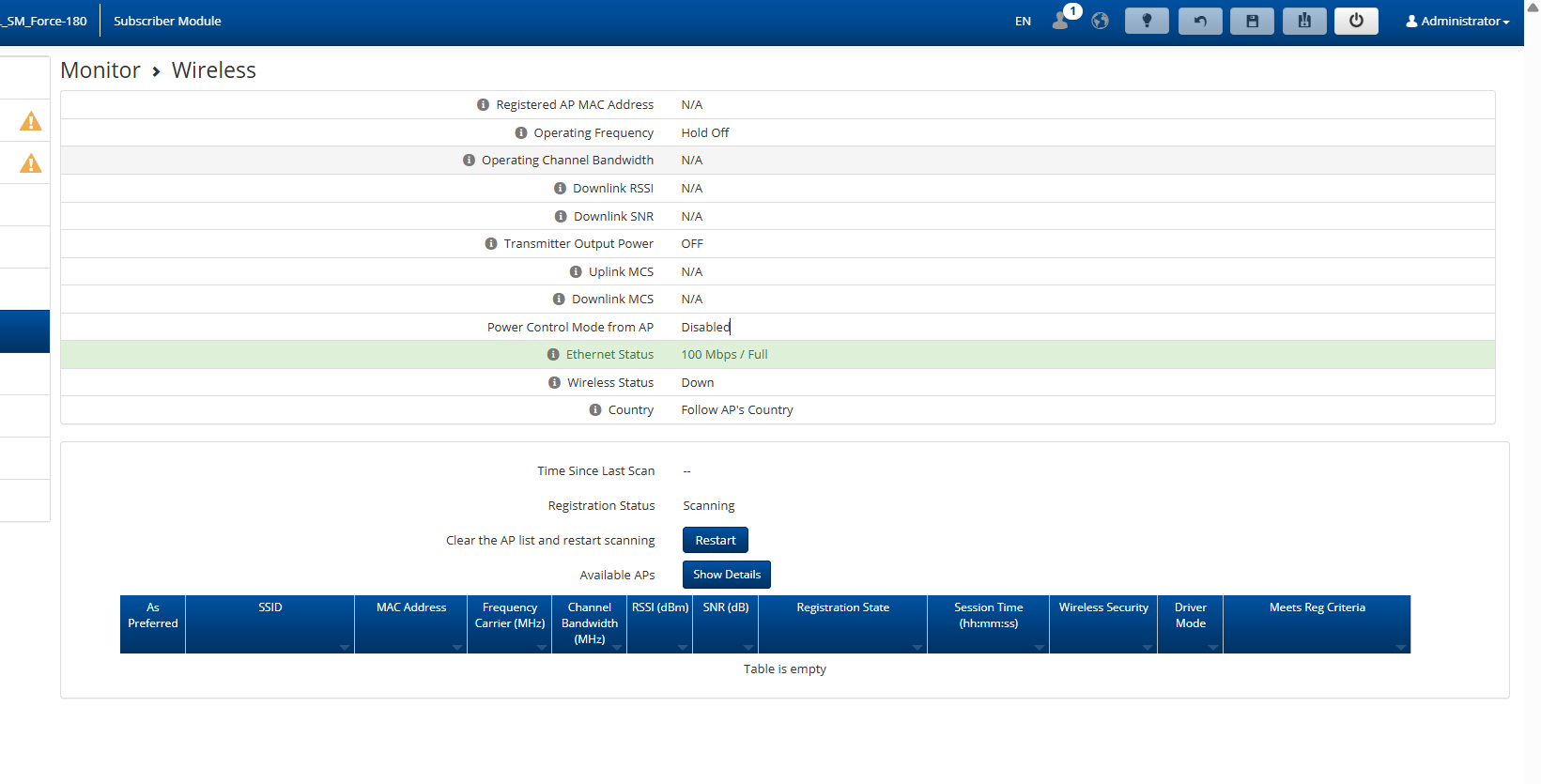

@BUDDHADEV_MAITY SM may be toasted. To confirm this swap roles. Put F180 in AP mode and F300 in slave. If F300 does not see it in scan list or on spectrum analyzer it may be broken.

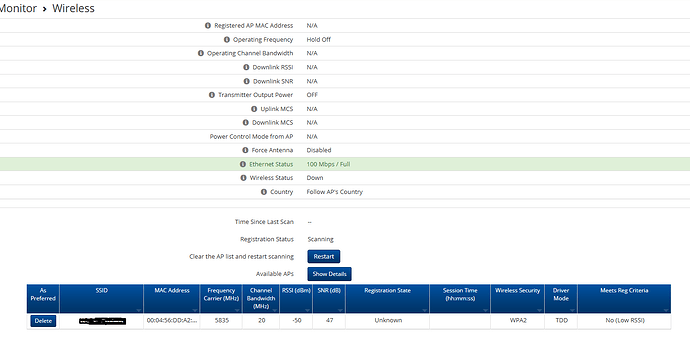

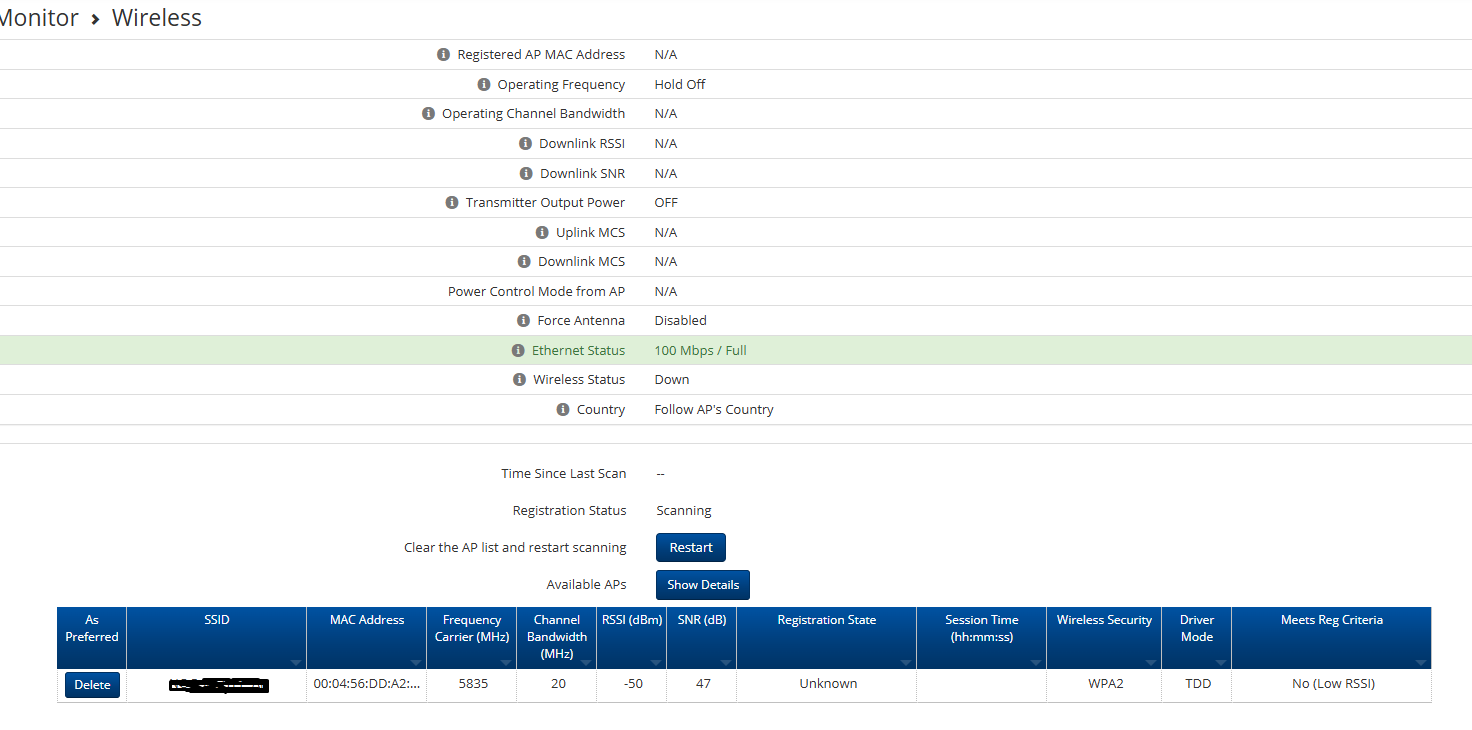

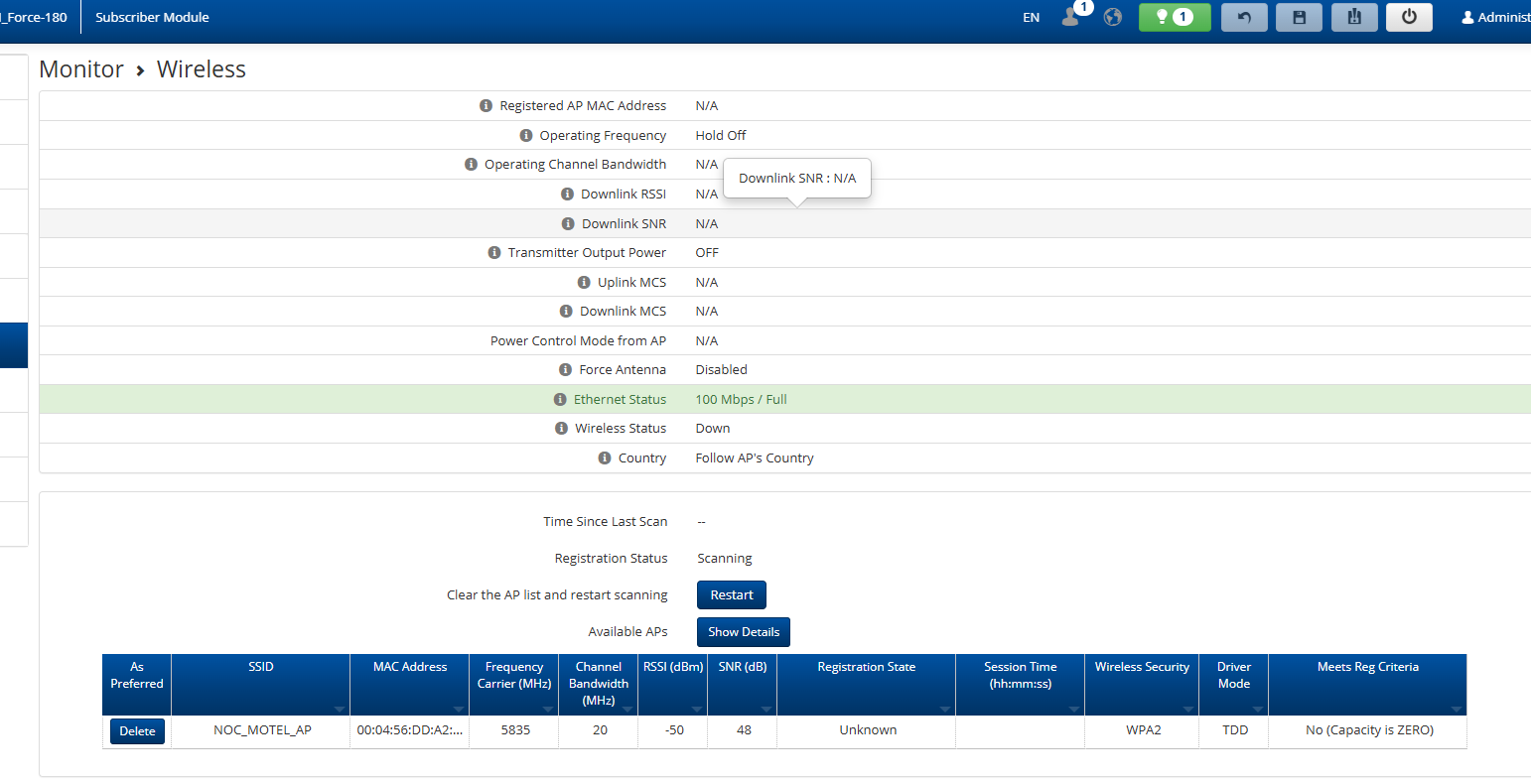

Your SM is also reporting for âMeets Registration Criteriaâ that âNo (Capacity is Zero)â
So, make sure on the unit you have configured as an AP, make sure that the âMax Registrations Allowedâ is set as high as it allows (10 or 12 or whatever) while you are testing. So, even if youâre only trying to connect one SM, I would still have it set to its maximum number for testing.
The Reg Criteria message you are getting (No - Capacity is Zero) indicates that It thinks it is at its maximum registration limit, and doesnât want to accept an additional connection.

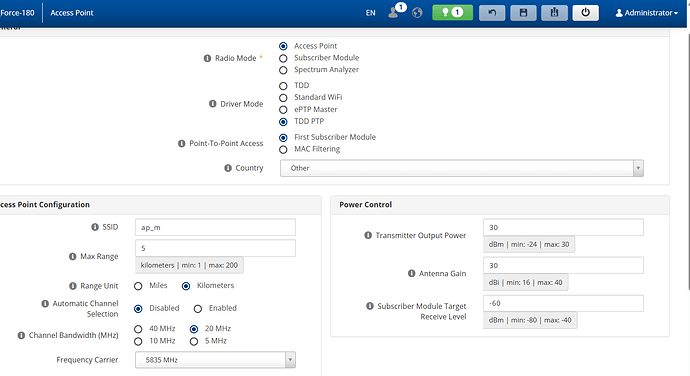

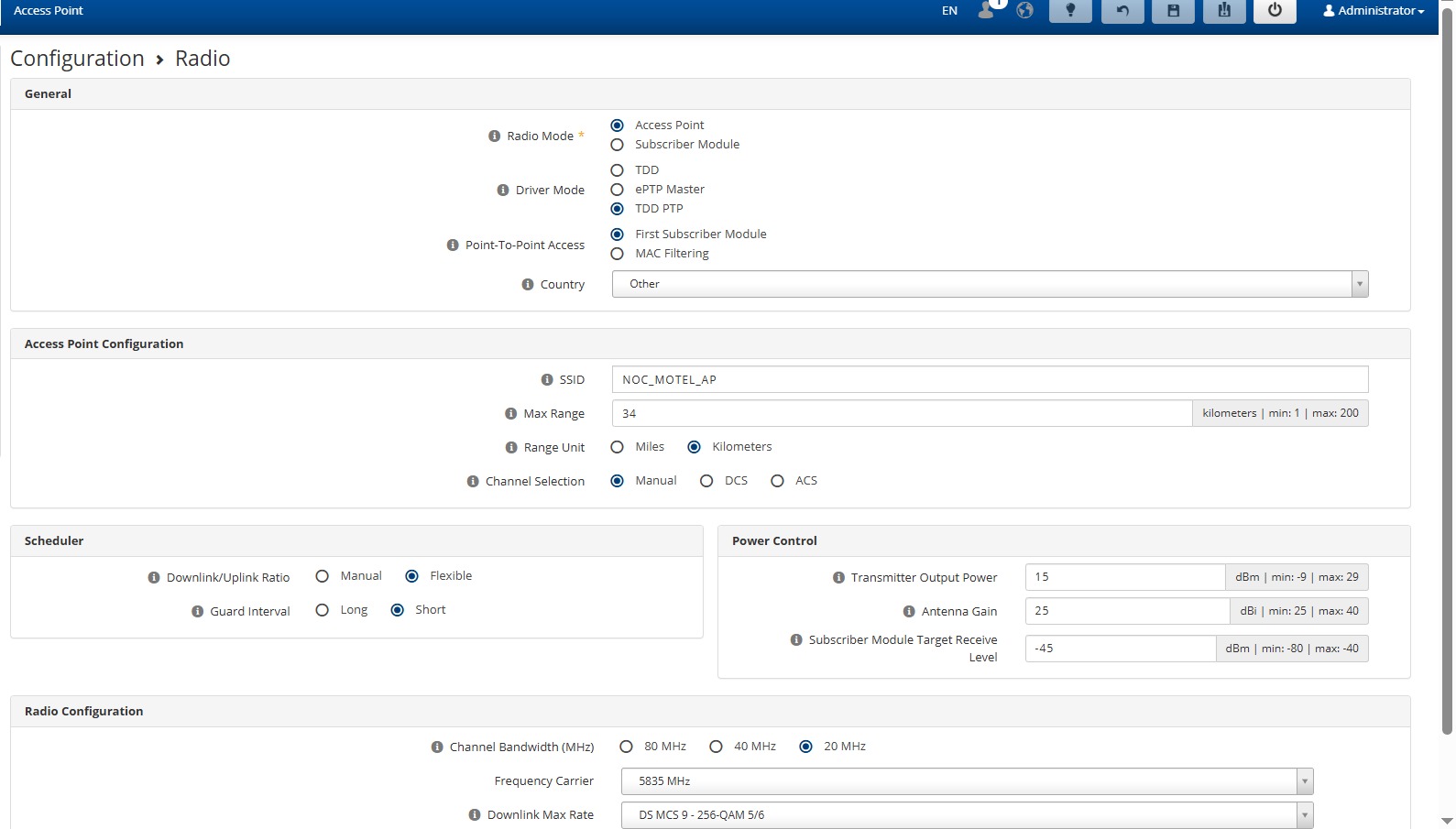

I noticed that too⌠but the screen shots he posted show that heâs using TDD-PTP mode, which should always allow for 1 SM to connect. I guess as a last ditch effort he could try TDD PtMP mode and see if increasing the max registrations allow it to connect.
1 Like
