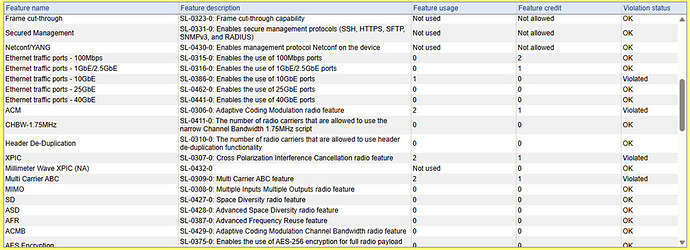

I would like to seek help if you could walkthrough me on how to resole my issue. Below is a screenshot of the violated features from my radio link.
You need to purchase and install the following license keys:
1 x N000082K167A PTP 820/850 Act.Key - 10GE port
1 x N000082L125A PTP 820/850 Act.Key - Capacity 500M with ACM Enabled, Per Tx Chan
1 x N000082L056A PTP 820/850 Act.Key - XPIC, per Tx Chan
1 x N000082L048A PTP 820/850 Act.Key - MC-ABC, per Tx Chan
License was already purchased and activated. Copied and paste keys into the radio activation box.
It appears you didn’t purchase/apply the license for each core of the radio. It shows you currently only have 1 license of each applied which will only work for 1 core. You need a second set of licenses for the other core.
Also, it shows you’re connected on 10GB port, but you licensed the 2.5gbps port on the radio. If you cannot support a 2.5gbps port, you will need that license also to clear all your violations.
