PTP820C 80MHz radio mapping to FCC channel plan

allenyu · December 9, 2014, 12:05am

for PTP820C, we offers follwoing variation:

folowing table provide a guidance for FCC 11 Ghz channe plan mapping:

hope this helps when you plan your inventory and spare plan.

Enjoy

Allne

allenyu · December 9, 2014, 4:02am

a correction for 11 GHz 80MHz channel.

11Ghz (80Mhz) Channel Plan FCC Part 101.147
			PTP820C 11WGHz Radio Options
Channel	Tx Low (MHz)	Tx High (MHz)	1w6	2w7	3w8	4w9	5w10	6w12	7w13
1	10745	10235	x
2	10825	10315	x	x	x
3	10905	10395	x	x	x	x	x
4	10985	10475			x	x	x	x	x
5	11065	10555					x	x	x
6	11145	10635						x	x

allenyu · December 9, 2014, 4:06am

in brief, just using Ch1W6 and Ch7W13, you will have full FCC 11GHz band overed wither for 40 or 80 Mhz channels in a 1+0 or 2+0 XPIC configuraitons.

sebastien_bordeleau · August 22, 2024, 8:27pm

Hi Allen, do you have the same chart but for Canadian frequencies? Because when I select the 2+0 CO-POLAR 60MHz I don’t find any frequency in the link planner ( Select button ) according to our Canadian’s frequencies chart.

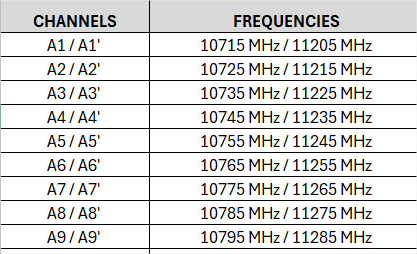

IC CANADA FREQUENCIES 11GHZ

yonghaolin · August 22, 2024, 8:41pm

Hi Sebastien,

Allen is no longer with Cambium. Can you please let me know what frequency pair you are trying to use?

Thanks,
Yonghao.

sebastien_bordeleau · August 23, 2024, 12:04pm

Hi Yonghaolin,

one of those

sebastien_bordeleau · August 23, 2024, 1:14pm

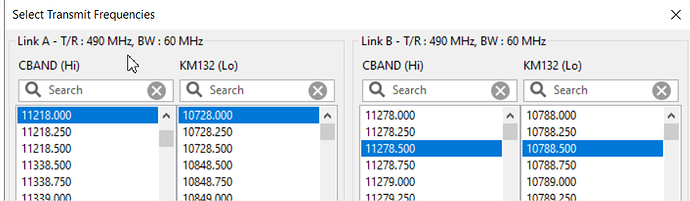

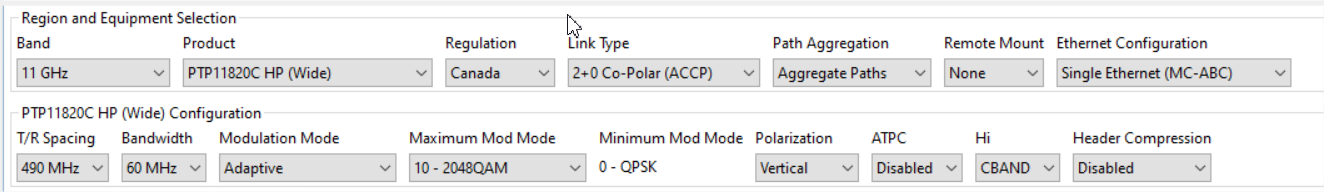

Because when I select those options in PTP 820C HP

sebastien_bordeleau · August 23, 2024, 1:37pm

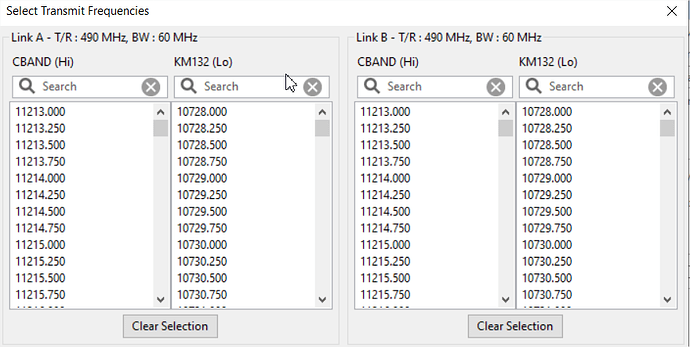

I dont see any of those canadians frequencies in your linkplanner list

yonghaolin · August 23, 2024, 5:14pm

Hi Sebastien,

I tried 10MHz channel size and I can see 10715/11205. I tried 60MHz, I can see 10755/11245.

I believe they are supported, you just dont want to have a big channel at the edge which will run out off the range of the frequency supported by the diplexer.
