I’m having trouble getting port forward to work. I notice a new field in the set up called Src IP Address. What is this field asking for or should I just leave it blank? I have done this before but with the latest firmware this new field is showing up. Also, are there any other security settings that might be preventing port forward from working? I have four pieces of broadcast equipment at this site on this router that I need to access remotely. I am using the Virtual Servers part of the Port Forward set up in the GUI.
Thanks
Steve
The source IP address field is not mandatory for port-forwarding/Virtual-servers.

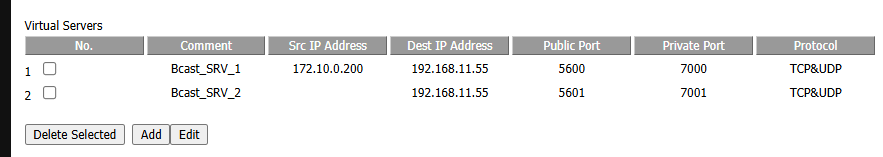

In the example below, Rule #1 will be functional only if the connection is initiated from 172.10.0.200; if any other client tries to access port 5600, then it will fail.
Rule #2 would allow access to port 5601 from any client as the source IP address is empty in this rule.
Let us know if you need help in setting up port-forwarding for your 4 servers.
