Unable to configure QOS via CLI

Products ePMP
1

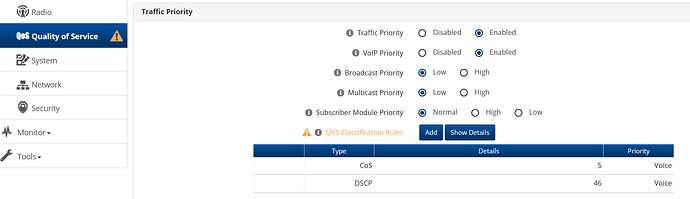

Hi I am trying to add under QOS Traffic Priority enable trafic and VOIP priority and QOS classification rules COS and DSCP via command line without success, can you please help?

QOS
QOS1598×462 41.4 KB

config set qosEnable 1
config set voipEnable 1
config set classificationListTable
config set classificationRuleQueue 3
config set classificationRuleType 3
config set classificationRuleValue 5
config save
config apply

2

Hello @Jorge_Arriaga , if you want to add new rule to the table you have to do it this way

config set {name_of_the_table} {number_of_the_rule} {name_of_parameter} {value}

In your case:

config set classificationListTable 3 classificationRuleQueue 3
config set classificationListTable 3 classificationRuleType 3
config set classificationListTable 3 classificationRuleValue 5
config save
config apply

if you want to add next rule you just change the number of the rule:

config set classificationListTable 4 classificationRuleQueue 3

Or if you want to edit, for example rule #2, you have just put there number of existing rule:

config set classificationListTable 2 classificationRuleQueue 3
3 Likes
3

Awesome. Thank you i Will give it a try

1 Like
