Applicable Versions: 5.12.0
Applicable Platforms: Force4616, Force4518, Force4600C, Force4625, Force400C, Force425, Force4525, Force4525L

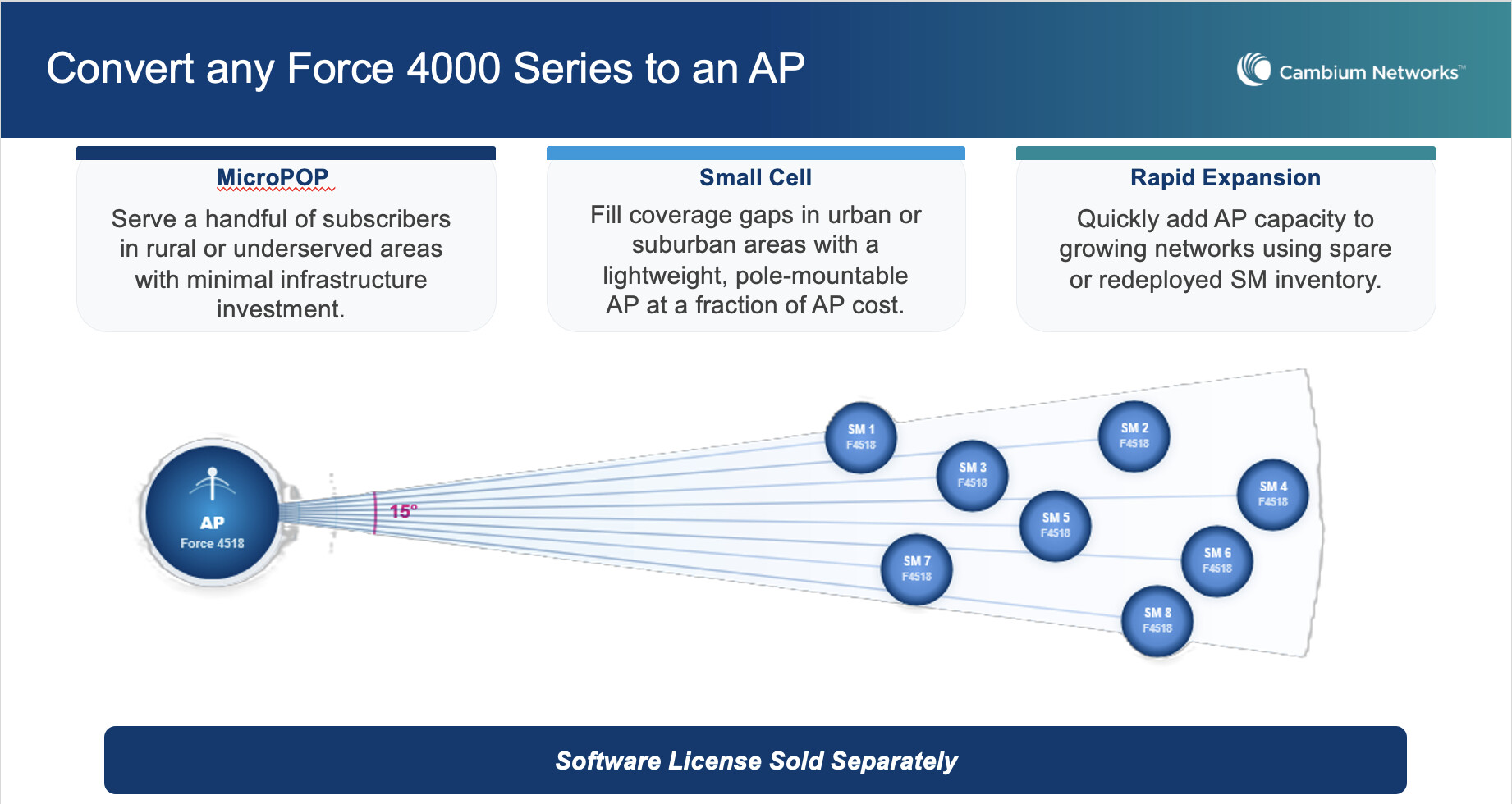

Starting with firmware 5.12.0 , the ePMP 4xxx Series SM-to-AP Upgrade feature is available, allowing selected Subscriber Modules (SMs) to operate as Access Points (APs).
The conversion is enabled through a software license key that can be purchased and applied to supported ePMP 4xxx Series Subscriber Modules.

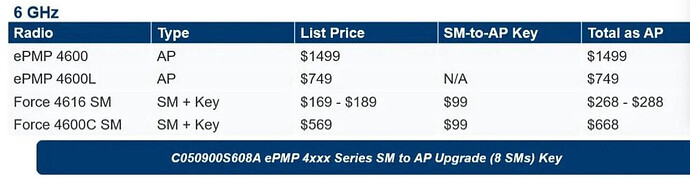

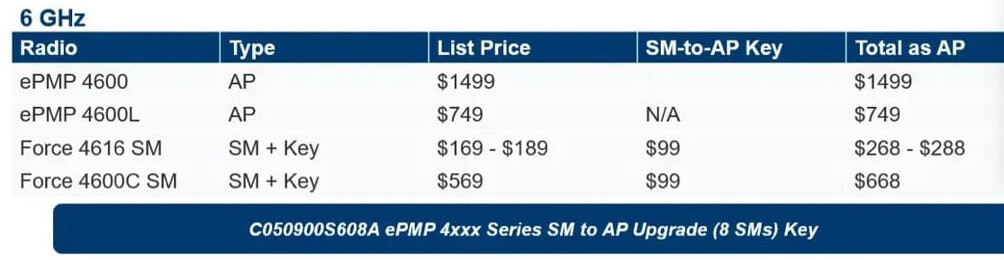

License Part Number:
C050900S608A – ePMP 4xxx Series SM to AP Upgrade (8 SMs) Key
This feature provides service providers with a flexible and cost-effective way to deploy small coverage areas, temporary sectors, low-density subscriber clusters, and specialized point-to-multipoint applications without requiring dedicated AP hardware.
Key Benefits
- Ultra low-cost AP deployment in both 5 GHz and 6 GHz bands.
- Compact form factor , ideal for small sites and space-constrained installations.
- Repurpose existing SM inventory as APs , reducing capital expenditures and improving inventory utilization (license sold separately).
- Full support for cnMaestro™ management and monitoring.
- Compatible with LINKPlanner network design tools.
- Familiar and consistent ePMP AP user interface , minimizing operational and training overhead.
- Enables rapid network expansion using readily available hardware.
- Useful for temporary deployments, pilot networks, rural coverage extensions, and small business installations.
Tradeoffs and Limitations
- Supports a maximum of 8 Subscriber Modules per AP .
- GPS synchronization is not supported , limiting deployment in heavily synchronized networks.
- Force 4616 and Force 4625 platforms are limited to a maximum channel width of 80 MHz when operating as an AP.
- Not intended for high-density sectors or large-scale access deployments.
- Subscriber Module antenna patterns are typically narrower than dedicated AP sector antennas , resulting in reduced coverage area and deployment flexibility.
- Lower subscriber capacity and scalability compared to dedicated ePMP Access Point platforms.
- Best suited for low-density, targeted coverage scenarios rather than primary network sectors.
Recommended Use Cases
- Rural and low-density subscriber clusters
- Temporary network deployments
- Rapid service restoration during outages
- Small business and enterprise connectivity
- Network expansion using existing hardware inventory
- Proof-of-concept and pilot installations
